Product Information
Phase Detail
Claricep Spherical Silica
Claricep spherical CS silica flash columns provide significant performance over traditional flash columns on the market

Claricep Spherical Silica

  • Higher Resolution and Better Purification for 20 µm
  • Lower Backpressure, Faster Flow Rate, and Higher Loading Capacity for 20-35 µm

Recommended Use
Low pressure separations offering improved performance and consistent silica surface activity

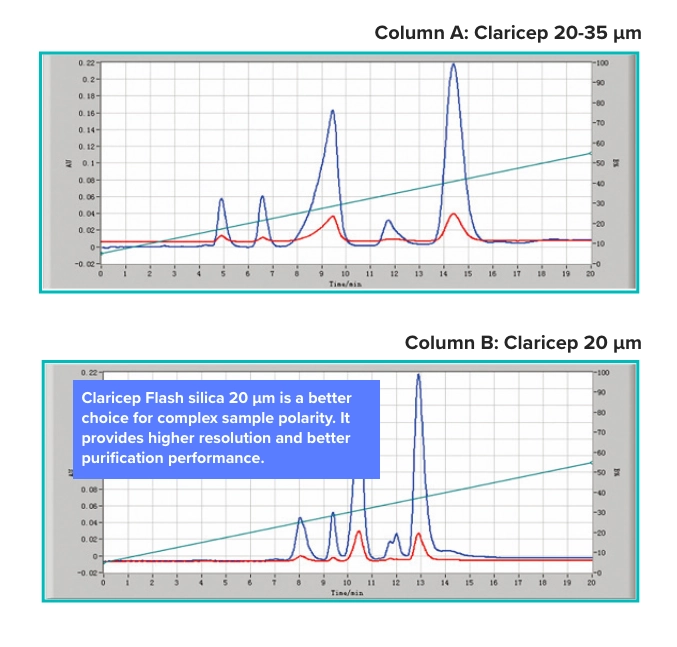

Purification of a Sample with Methacrylic Acid Ester Target Compound

Sample Information

The sample is a colorless liquid, with about 60 % target compound by weight. Dissolve 0.2 mL of sample into 1.5 mL ethanol sonication.

Flash Conditions

Column A:
Claricep Spherical Silica (20-35 µm, 100 Å, 12 g, 2 columns in tandem)
Column B:
Claricep Spherical Silica (20 µm, 100 Å, 12 g, 2 columns in tandem)
Mobile Phase:
A: Hexane
B: Ethanol
Gradient:
Time (min)
0
20

% B
5
55
Flow Rate:
12 mL/min
Detection:
UV @ 254/220 nm
Sample Loading:
0.2 mL

Small molecular weight with UV absorption of methacrylic acid ester R: no UV absorption



CLARICEP Spherical Silica Screw-on Columns

The Screw-on series of Flash columns are a new feature that allows the user to load a solid phase, viscous phase, or simply open the cap for a more user friendly analysis.

Which Screw-on Series should I order ?

CLARICEP i-Series

The i-Series features a managed column head space with a secured screw-on lid. This new design allows either loading of liquid samples directly onto the column head or loading of impregnated solid sample directly into the space. Users will benefit from:

  • Choice of loading method based on sample properties
  • Narrow band for liquid samples because of wide loading area
  • Dry-loading of solid impregnated samples minimizes band broadening
  • Customized loading method upon user preference

Ordering Information
Part Number starts with “SN”. As an example, to order SS130020-0 in i-series, Part Number to order is SN-SS130020-0

I_series

CLARICEP c-Series

The c-Series shares the same design, but the column outlet does not have a luer lock structure, this simplifies tubing connection across various flash systems.

Compatible with instruments from the following:
  • Agela Technologies
  • Buchi
  • Grace
  • Interchim
  • Other brands

Ordering Information
Part Number starts with “C”. As an example, to order SS130020-0 in c-series, Part Number to order is C-SS130020-0

C_series

CLARICEP s-Series

The s-Series columns are fully packed without a head void. In addition, the Luer lock fittings for both inlet and outlet allows easy operation of tandem columns or the coupling of a loading cartridge.

Compatible with instruments from the following:
  • Biotage

Ordering Information
Part Number starts with “S”. As an example, to order SS130020-0 in s-series, Part Number to order is S-SS130020-0

S_series
