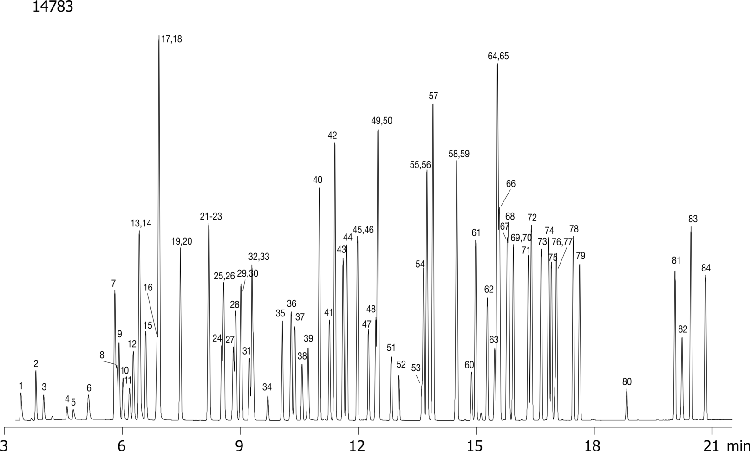

EPA Method 8260: Volatile Organics on ZB-624
GC Conditions
Official Method
EPA 8260
Column
Zebron ZB-624, GC Cap. Column 60 m x 0.25 mm x 1.40 µm, Ea
Part No
7KG-G005-27
Phase Name
ZB-624
Injection
Purge and Trap 30:1 @ 250°C
Carrier Gas
Constant Flow Helium, 1.1 mL/min
Detection
Mass Selective (MSD) @ (180°C)
Detection Info
Sample Notes
The sample was introduced via a Tekmar 2000 Purge and Trap with the following settings. Purge time was 11.0 minutes with a dry purge time of 2.0 minutes. Desorb preheat was 245ºC and desorb conditions for 2.0 minutes at 250ºC. A bake time of 8.0 minutes was used at 260ºC with valve and lines at 120ºC and a mount at 40ºC.
Order Items Used in This Application
- 1. Dichlorodifluoromethane
- 2. Chloromethane
- 3. Vinyl chloride
- 4. Bromomethane
- 5. Chloroethane
- 6. Trichlorofluoromethane
- 7. Acrolein
- 8. 1,1,2-Trichloro-1,2,2-trifluorome
- 9. 1,1-Dichloroethene
- 10. Acetone
- 11. Iodomethane
- 12. Carbon disulfide
- 13. Methyl acetate
- 14. Acetonitrile
- 15. Methylene chloride
- 16. t-Butyl Methyl Ether
- 17. trans-1,2-Dichloroethene
- 18. Acrylonitrile
- 19. 1,1-Dichloroethane
- 20. Vinyl acetate
- 21. 2,2 Dichloropropane
- 22. 2-Butanone
- 23. cis-1,2-Dichloroethene
- 24. Bromochloromethane
- 25. Tetrahydrofuran
- 26. Chloroform
- 27. 1,1,1-Trichloroethane
- 28. Cyclohexane
- 29. Carbon tetrachloride
- 30. 1,1-Dichloropropene
- 31. 1,2-Dichloroethane-d4
- 32. Benzene
- 33. 1,2-Dichloroethane
- 34. 1,4-Difluorobenzene
- 35. Trichloroethene
- 36. Methylcyclohexane
- 37. 1,2-Dichloropropane
- 38. Dibromomethane
- 39. Bromodichloromethane
- 40. 2-Chloroethyl vinyl ether
- 41. cis-1,3-Dichloropropene
- 42. 4-Methyl-2-Pentanone
- 43. Toluene-d8
- 44. Toluene
- 45. trans-1,3-Dichloropropene
- 46. Ethyl methacrylate
- 47. 1,1,2-Trichloroethane
- 48. Tetrachloroethene
- 49. 1,3-Dichloropropane
- 50. 2-Hexanone
- 51. Dibromochloromethane
- 52. 1,2-Dibromoethane
- 53. Chlorobenzene-d5
- 54. Chlorobenzene
- 55. Ethylbenzene
- 56. 1,1,1,2-Tetrachloroethane
- 57. m/p-Xylene
- 58. o-Xylene
- 59. Styrene
- 60. Bromoform
- 61. Isopropylbenzene
- 62. p-Bromofluorobenzene
- 63. 1,1,2,2-Tetrachloroethane
- 64. Bromobenzene
- 65. t-1,4-Dichloro-2-Butene
- 66. 1,2,3-Trichloropropane
- 67. n-Propylbenzene
- 68. 1,3,5-Trimethylbenzene
- 69. 2-Chlorotoluene
- 70. 4-Chlorotoluene
- 71. tert-Butylbenzene
- 72. 1,2,4-Trimethylbenzene
- 73. sec-Butylbenzene
- 74. 4-Isopropyltoluene
- 75. 1,3-Dichlorobenzene
- 76. 1,4-Dichlorobenzene-d4
- 77. 1,4-Dichlorobenzene
- 78. n-Butylbenzene
- 79. 1,2-Dichlorobenzene
- 80. 1,2-Dibromo-3-Chloropropane
- 81. 1,2,4-Trichlorobenzene
- 82. Hexachlorobutadiene
- 83. Naphthalene
- 84. 1,2,3-Trichlorobenzene
