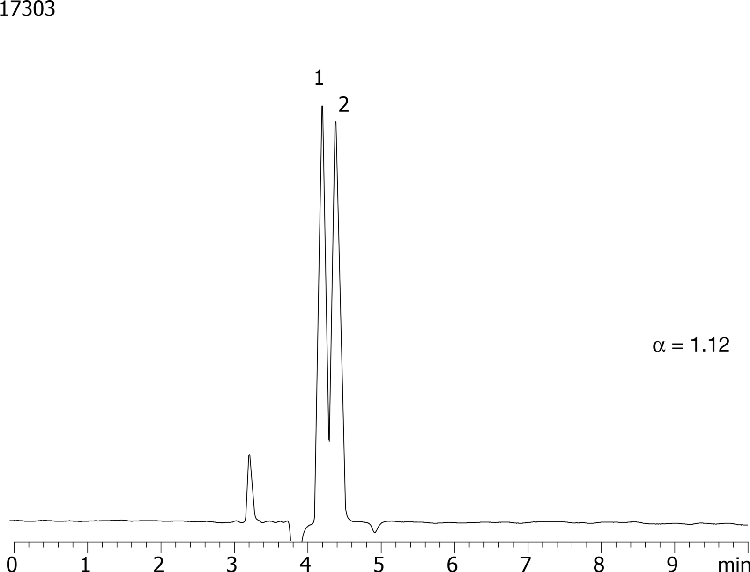

Flecainide on Lux Cellulose-1
LC Conditions
Column
Lux 5 µm Cellulose-1, LC Column 250 x 4.6 mm, Ea
Brand
Lux
Part No
00G-4459-E0
Phase Name
Cellulose-1
Elution Type
Isocratic
Mobile Phase
A: 0.1 % DEA in CH3CN
B: 0.1% DEA in IPA
Gradient Profile
Step No.
Time(min)
%A
%B
1
10
95
5
Flow Rate
1.00 mL/min
Temperature
22°C
Detection
UV-Vis Abs.-Variable Wave.(UV) @ (22°C)
Detection Info
Sample Notes
SecurityGuard™ Guard Cartridge System extends column lifetime. - SecurityGuard Cartridges, Lux Cellulose-1, 4 x 3.0mm, 10/Pk Part No.: AJ0-8403 - Holder Part No.: KJ0-4282
Order Items Used in This Application
- 1. Flecainide
- 2. Flecainide
-OEChem-06211003152D<br><br> 48 49 0 1 0 0 0 0 0999 V2000<br> 2.0000 0.4330 0.0000 F 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.3660 -0.9330 0.0000 F 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.3660 0.7990 0.0000 F 0 0 0 0 0 0 0 0 0 0 0 0<br> 9.7942 -4.0670 0.0000 F 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.4282 -4.4330 0.0000 F 0 0 0 0 0 0 0 0 0 0 0 0<br> 9.4282 -2.7010 0.0000 F 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.4641 1.4330 0.0000 O 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.5981 -0.0670 0.0000 O 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.0622 -2.0670 0.0000 O 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.0622 3.9330 0.0000 N 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.1962 1.4330 0.0000 N 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.0622 2.9330 0.0000 C 0 0 3 0 0 0 0 0 0 0 0 0<br> 8.9282 2.4330 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 9.7942 2.9330 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 9.7942 3.9330 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.9282 4.4330 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.1962 2.4330 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.3301 0.9330 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.3301 -0.0670 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.4641 -0.5670 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.1962 -0.5670 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.1962 -1.5670 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.4641 -1.5670 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.3301 -2.0670 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.7320 -0.5670 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.0622 -3.0670 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.8660 -0.0670 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.9282 -3.5670 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.5252 3.2430 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.5297 1.9581 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 9.3267 1.9581 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 10.0063 2.3504 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 10.4048 3.0407 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 10.4048 3.8254 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 10.0063 4.5156 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 9.3267 4.9080 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.5297 4.9080 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.5252 4.2430 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.9841 3.0156 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.5856 2.3253 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.7331 1.1230 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.7331 -0.2570 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.9272 -1.8770 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.3301 -2.6870 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.3335 -1.0419 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.1306 -1.0419 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.4516 -2.9593 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.8501 -3.6496 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 1 27 1 0 0 0 0<br> 2 27 1 0 0 0 0<br> 3 27 1 0 0 0 0<br> 4 28 1 0 0 0 0<br> 5 28 1 0 0 0 0<br> 6 28 1 0 0 0 0<br> 7 18 2 0 0 0 0<br> 8 20 1 0 0 0 0<br> 8 25 1 0 0 0 0<br> 9 22 1 0 0 0 0<br> 9 26 1 0 0 0 0<br> 10 12 1 0 0 0 0<br> 10 16 1 0 0 0 0<br> 10 38 1 0 0 0 0<br> 11 17 1 0 0 0 0<br> 11 18 1 0 0 0 0<br> 11 41 1 0 0 0 0<br> 12 13 1 0 0 0 0<br> 12 17 1 0 0 0 0<br> 12 29 1 0 0 0 0<br> 13 14 1 0 0 0 0<br> 13 30 1 0 0 0 0<br> 13 31 1 0 0 0 0<br> 14 15 1 0 0 0 0<br> 14 32 1 0 0 0 0<br> 14 33 1 0 0 0 0<br> 15 16 1 0 0 0 0<br> 15 34 1 0 0 0 0<br> 15 35 1 0 0 0 0<br> 16 36 1 0 0 0 0<br> 16 37 1 0 0 0 0<br> 17 39 1 0 0 0 0<br> 17 40 1 0 0 0 0<br> 18 19 1 0 0 0 0<br> 19 20 2 0 0 0 0<br> 19 21 1 0 0 0 0<br> 20 23 1 0 0 0 0<br> 21 22 2 0 0 0 0<br> 21 42 1 0 0 0 0<br> 22 24 1 0 0 0 0<br> 23 24 2 0 0 0 0<br> 23 43 1 0 0 0 0<br> 24 44 1 0 0 0 0<br> 25 27 1 0 0 0 0<br> 25 45 1 0 0 0 0<br> 25 46 1 0 0 0 0<br> 26 28 1 0 0 0 0<br> 26 47 1 0 0 0 0<br> 26 48 1 0 0 0 0<br>M END
Compound Name
Flecainide
CID
3356
Molecular Formula
C17H20F6N2O3
Molecular Weight
414
No. Hydrogen Bond Acceptors
10
No. Hydrogen Bond Donors
2
