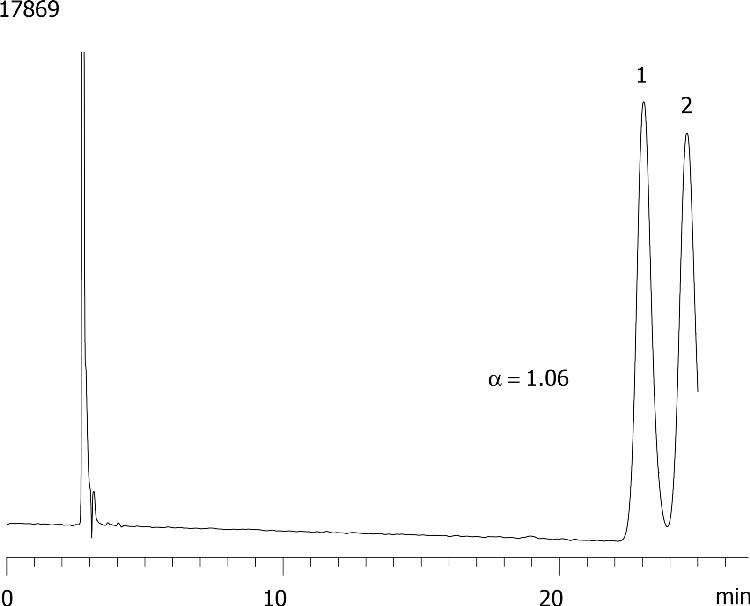

Trimipramne on Lux 5µ Cellulose-1 in RP 50% CH3CN
LC Conditions
Column
Lux 5 µm Cellulose-1, LC Column 250 x 4.6 mm, Ea
Brand
Lux
Part No
00G-4459-E0
Phase Name
Cellulose-1
Elution Type
Isocratic
Mobile Phase
A: 20mM Ammonium acetate +0.1% DEA
B: Acetonitrile
Gradient Profile
Step No.
Time(min)
%A
%B
1
10
50
50
Flow Rate
1.00 mL/min
Temperature
22°C
Detection
UV-Vis Abs.-Variable Wave.(UV) @ (22°C)
Detection Info
Sample Notes
SecurityGuard™ Guard Cartridge System extends column lifetime. - SecurityGuard Cartridges, Lux Cellulose-1, 4 x 3.0mm, 10/Pk Part No.: AJ0-8403 - Holder Part No.: KJ0-4282
Order Items Used in This Application
- 1. Trimipramine
- 2. Trimipramine
-OEChem-06211003152D<br><br> 48 50 0 1 0 0 0 0 0999 V2000<br> 4.8830 0.9047 0.0000 N 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.1509 -2.0953 0.0000 N 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.0170 -0.5953 0.0000 C 0 0 3 0 0 0 0 0 0 0 0 0<br> 4.8830 -0.0953 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.9820 1.3386 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.7840 1.3385 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.0169 -1.5953 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.3830 3.0953 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.3830 3.0953 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.7595 2.3135 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.0065 2.3135 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.1509 -0.0953 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.2295 0.6184 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.5365 0.6184 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.7690 2.6358 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.9970 2.6358 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.2318 0.9177 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.5342 0.9177 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.0000 1.9333 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.7660 1.9332 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.1509 -3.0953 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.2849 -1.5953 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.0170 0.0247 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.0950 -0.6779 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.4936 0.0123 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.2290 -2.1779 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.6275 -1.4877 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.5210 3.6998 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.8244 3.3643 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.9416 3.3643 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.2450 3.6998 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.4609 0.4416 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.6140 0.2147 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.8409 -0.6322 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.3744 0.0156 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.3916 0.0155 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.6380 3.2418 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.1280 3.2418 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 1.7789 0.4943 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.9871 0.4942 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 1.4083 2.1183 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.3578 2.1182 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.5309 -3.0953 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.1509 -3.7153 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.7709 -3.0953 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.5949 -1.0584 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 1.7480 -1.2853 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 1.9749 -2.1322 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 1 4 1 0 0 0 0<br> 1 5 1 0 0 0 0<br> 1 6 1 0 0 0 0<br> 2 7 1 0 0 0 0<br> 2 21 1 0 0 0 0<br> 2 22 1 0 0 0 0<br> 3 4 1 0 0 0 0<br> 3 7 1 0 0 0 0<br> 3 12 1 0 0 0 0<br> 3 23 1 0 0 0 0<br> 4 24 1 0 0 0 0<br> 4 25 1 0 0 0 0<br> 5 10 1 0 0 0 0<br> 5 13 2 0 0 0 0<br> 6 11 1 0 0 0 0<br> 6 14 2 0 0 0 0<br> 7 26 1 0 0 0 0<br> 7 27 1 0 0 0 0<br> 8 9 1 0 0 0 0<br> 8 10 1 0 0 0 0<br> 8 28 1 0 0 0 0<br> 8 29 1 0 0 0 0<br> 9 11 1 0 0 0 0<br> 9 30 1 0 0 0 0<br> 9 31 1 0 0 0 0<br> 10 15 2 0 0 0 0<br> 11 16 2 0 0 0 0<br> 12 32 1 0 0 0 0<br> 12 33 1 0 0 0 0<br> 12 34 1 0 0 0 0<br> 13 17 1 0 0 0 0<br> 13 35 1 0 0 0 0<br> 14 18 1 0 0 0 0<br> 14 36 1 0 0 0 0<br> 15 19 1 0 0 0 0<br> 15 37 1 0 0 0 0<br> 16 20 1 0 0 0 0<br> 16 38 1 0 0 0 0<br> 17 19 2 0 0 0 0<br> 17 39 1 0 0 0 0<br> 18 20 2 0 0 0 0<br> 18 40 1 0 0 0 0<br> 19 41 1 0 0 0 0<br> 20 42 1 0 0 0 0<br> 21 43 1 0 0 0 0<br> 21 44 1 0 0 0 0<br> 21 45 1 0 0 0 0<br> 22 46 1 0 0 0 0<br> 22 47 1 0 0 0 0<br> 22 48 1 0 0 0 0<br>M END
Compound Name
Trimipramine
CID
5584
Molecular Formula
C20H26N2
Molecular Weight
294
No. Hydrogen Bond Acceptors
2
