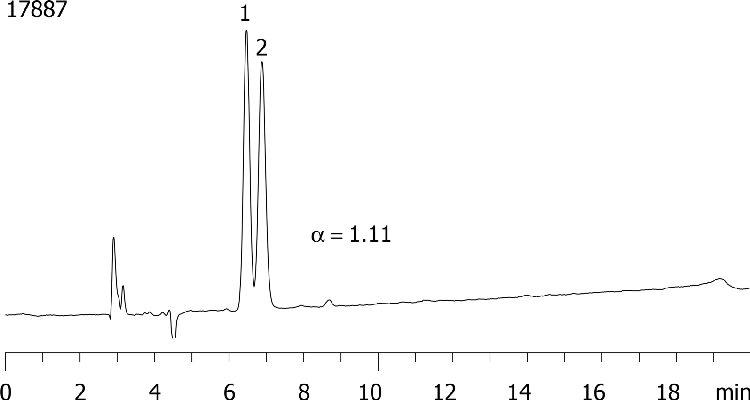

Venlafaxine on Lux 5µ Cellulose-2 in NP 95% Hexane
LC Conditions
Column
Lux 5 µm Cellulose-2, LC Column 250 x 4.6 mm, Ea
Brand
Lux
Part No
00G-4457-E0
Phase Name
Cellulose-2
Elution Type
Isocratic
Mobile Phase
A: 0.1% DEA in Hexane
B: 0.1% DEA in IPA
Gradient Profile
Step No.
Time(min)
%A
%B
1
10
95
5
Flow Rate
1.00 mL/min
Temperature
22°C
Detection
UV-Vis Abs.-Variable Wave.(UV) @ (22°C)
Detection Info
Sample Notes
SecurityGuard™ Guard Cartridge System extends column lifetime. - SecurityGuard Cartridges, Lux Cellulose-2, 4 x 3.0mm, 10/Pk Part No.: AJ0-8366 - Holder Part No.: KJ0-4282
Order Items Used in This Application
- 1. Venlafaxine
- 2. Venlafaxine
-OEChem-06211003152D<br><br> 47 48 0 1 0 0 0 0 0999 V2000<br> 2.6200 0.1340 0.0000 O 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.6200 0.1340 0.0000 O 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.6200 1.8660 0.0000 N 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.1200 -0.7321 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.6200 0.1340 0.0000 C 0 0 3 0 0 0 0 0 0 0 0 0<br> 2.2540 -1.2320 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.9860 -1.2320 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.2540 -2.2320 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.9860 -2.2320 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.1200 -2.7320 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.1200 1.0000 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.6200 0.1340 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.1200 1.0000 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.1200 -0.7321 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.1200 2.7320 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.6200 1.8660 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.1200 1.0000 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.1200 -0.7321 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.6200 0.1340 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.1200 1.0000 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.0000 0.1340 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.0419 -0.6494 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 1.6434 -1.3397 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.5966 -1.3397 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.1981 -0.6494 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 1.6434 -2.1244 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.0419 -2.8147 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.1981 -2.8147 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.5966 -2.1244 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.7215 -3.2070 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.5185 -3.2070 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.6450 1.3985 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.6450 0.6015 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.0000 0.1340 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.8100 1.5369 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.8100 -1.2690 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.6569 3.0420 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.8100 3.2690 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.5831 2.4220 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.6200 1.2460 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.2400 1.8660 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.6200 2.4860 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.4300 1.5369 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.4300 -1.2690 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.6569 0.6900 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.4300 1.5369 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.5831 1.3100 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 1 4 1 0 0 0 0<br> 1 34 1 0 0 0 0<br> 2 19 1 0 0 0 0<br> 2 20 1 0 0 0 0<br> 3 11 1 0 0 0 0<br> 3 15 1 0 0 0 0<br> 3 16 1 0 0 0 0<br> 4 5 1 0 0 0 0<br> 4 6 1 0 0 0 0<br> 4 7 1 0 0 0 0<br> 5 11 1 0 0 0 0<br> 5 12 1 0 0 0 0<br> 5 21 1 0 0 0 0<br> 6 8 1 0 0 0 0<br> 6 22 1 0 0 0 0<br> 6 23 1 0 0 0 0<br> 7 9 1 0 0 0 0<br> 7 24 1 0 0 0 0<br> 7 25 1 0 0 0 0<br> 8 10 1 0 0 0 0<br> 8 26 1 0 0 0 0<br> 8 27 1 0 0 0 0<br> 9 10 1 0 0 0 0<br> 9 28 1 0 0 0 0<br> 9 29 1 0 0 0 0<br> 10 30 1 0 0 0 0<br> 10 31 1 0 0 0 0<br> 11 32 1 0 0 0 0<br> 11 33 1 0 0 0 0<br> 12 13 2 0 0 0 0<br> 12 14 1 0 0 0 0<br> 13 17 1 0 0 0 0<br> 13 35 1 0 0 0 0<br> 14 18 2 0 0 0 0<br> 14 36 1 0 0 0 0<br> 15 37 1 0 0 0 0<br> 15 38 1 0 0 0 0<br> 15 39 1 0 0 0 0<br> 16 40 1 0 0 0 0<br> 16 41 1 0 0 0 0<br> 16 42 1 0 0 0 0<br> 17 19 2 0 0 0 0<br> 17 43 1 0 0 0 0<br> 18 19 1 0 0 0 0<br> 18 44 1 0 0 0 0<br> 20 45 1 0 0 0 0<br> 20 46 1 0 0 0 0<br> 20 47 1 0 0 0 0<br>M END
Compound Name
Venlafaxine
CID
5656
Molecular Formula
C17H27NO2
Molecular Weight
277
No. Hydrogen Bond Acceptors
3
No. Hydrogen Bond Donors
1
