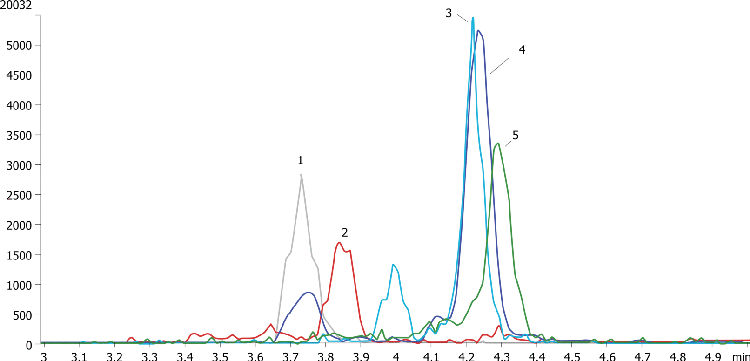

Tetracyclines in Meat by LC/MS/MS
LC Conditions
Column
Gemini 5 µm C18 110 Å, LC Column 50 x 4.6 mm, Ea
Brand
Gemini
Part No
00B-4435-E0
Phase Name
C18
Elution Type
Gradient
Mobile Phase
A: 0.1% Formic Acid in Water
B: Acetonitrile
Gradient Profile
Step No.
Time(min)
%A
%B
1
0
98
2
2
2
98
2
3
2.1
85
15
4
6.5
50
50
5
7.1
0
100
6
8
0
100
7
8.1
98
2
8
10
98
2
Flow Rate
0.80 mL/min
Temperature
40°C
Detection
Tandem Mass Spec (MS-MS) @ (600°C)
Detection Info
Sample Notes
SecurityGuard™ Guard Cartridge System extends column lifetime. - SecurityGuard Cartridges, Gemini C18 4 x 3.0mm ID, 10/Pk Part No.: AJ0-7597 - Holder Part No.: KJ0-4282
Sample Preparation Details
Description
Strata-X 33 µm Polymeric Reversed Phase, 60 mg / 3 mL, Tubes, 50/Pk
Part No
8B-S100-UBJ
Condition 1
4 mL Methanol at 30 µL/min
Condition 2
4 mL 0.1% Formic Acid at 30 µL/min
Load
Load 4.00 mL Sample diluted in Filtrate
Wash 1
2 mL 0.1% Formic Acid at 30 µL/min
Wash 2
1
Dry
Evaporate to dryness using an eppendorf concentrator set at 45C or blow dry with nitrogen.
Elution 1
1 mL Methanol
Evaporation
Evaporate to dryness
Order Items Used in This Application
- 1. Oxytetracycline
- 2. Tetracycline
- 3. Chlortetracycline
- 4. Methacycline
- 5. Doxycycline
-OEChem-05081000432D<br><br> 57 60 0 1 0 0 0 0 0999 V2000<br> 6.9338 1.9246 0.0000 O 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.0678 -1.5754 0.0000 O 0 0 0 0 0 0 0 0 0 0 0 0<br> 9.1837 1.8310 0.0000 O 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.9338 -2.0754 0.0000 O 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.6822 -2.1100 0.0000 O 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.6839 -1.9818 0.0000 O 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.4037 0.9488 0.0000 O 0 0 0 0 0 0 0 0 0 0 0 0<br> 10.5194 -2.1530 0.0000 O 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.4075 -2.0995 0.0000 O 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.1854 1.9592 0.0000 N 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.5357 -0.6029 0.0000 N 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.0678 0.4246 0.0000 C 0 0 2 0 0 0 0 0 0 0 0 0<br> 7.7998 0.4246 0.0000 C 0 0 2 0 0 0 0 0 0 0 0 0<br> 6.9338 0.9246 0.0000 C 0 0 2 0 0 0 0 0 0 0 0 0<br> 6.0678 -0.5754 0.0000 C 0 0 1 0 0 0 0 0 0 0 0 0<br> 5.1738 0.9593 0.0000 C 0 0 1 0 0 0 0 0 0 0 0 0<br> 8.6938 0.9593 0.0000 C 0 0 1 0 0 0 0 0 0 0 0 0<br> 7.7998 -0.5754 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.9338 -1.0754 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.1738 -1.1100 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 9.5998 0.4455 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.2678 0.4455 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.6938 -1.1100 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.1838 1.8195 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 9.5998 -0.5962 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.2678 -0.5962 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 10.5310 1.0024 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.3252 2.4692 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.0572 2.4492 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 10.5310 -1.1531 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.4037 -1.0995 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 11.4748 0.4671 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 11.4748 -0.6179 0.0000 C 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.0743 1.2746 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.7933 1.2746 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.3969 1.2346 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.7149 1.2620 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.7171 2.1357 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.8676 2.3528 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.6505 1.5033 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 7.4707 2.2346 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.7578 -2.1123 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 8.8675 2.3644 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 10.5238 1.6223 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.6414 3.0025 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 3.7919 2.7854 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 4.0090 1.9359 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.3609 1.9087 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 6.5976 2.7530 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 5.7534 2.9897 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 9.2155 -2.4261 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 12.0105 0.7792 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 12.0105 -0.9299 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.0000 -0.9149 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.5334 0.0171 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 11.0528 -2.4692 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 2.8718 -2.4116 0.0000 H 0 0 0 0 0 0 0 0 0 0 0 0<br> 14 1 1 1 0 0 0<br> 1 41 1 0 0 0 0<br> 15 2 1 1 0 0 0<br> 2 42 1 0 0 0 0<br> 17 3 1 6 0 0 0<br> 3 43 1 0 0 0 0<br> 4 19 2 0 0 0 0<br> 5 23 1 0 0 0 0<br> 5 51 1 0 0 0 0<br> 6 20 2 0 0 0 0<br> 7 22 2 0 0 0 0<br> 8 30 1 0 0 0 0<br> 8 56 1 0 0 0 0<br> 9 31 1 0 0 0 0<br> 9 57 1 0 0 0 0<br> 16 10 1 1 0 0 0<br> 10 28 1 0 0 0 0<br> 10 29 1 0 0 0 0<br> 11 31 1 0 0 0 0<br> 11 54 1 0 0 0 0<br> 11 55 1 0 0 0 0<br> 12 14 1 0 0 0 0<br> 12 15 1 0 0 0 0<br> 12 16 1 0 0 0 0<br> 12 34 1 1 0 0 0<br> 13 14 1 0 0 0 0<br> 13 17 1 0 0 0 0<br> 13 18 1 0 0 0 0<br> 13 35 1 1 0 0 0<br> 14 36 1 0 0 0 0<br> 15 19 1 0 0 0 0<br> 15 20 1 0 0 0 0<br> 16 22 1 0 0 0 0<br> 16 37 1 0 0 0 0<br> 17 21 1 0 0 0 0<br> 17 24 1 0 0 0 0<br> 18 19 1 0 0 0 0<br> 18 23 2 0 0 0 0<br> 20 26 1 0 0 0 0<br> 21 25 2 0 0 0 0<br> 21 27 1 0 0 0 0<br> 22 26 1 0 0 0 0<br> 23 25 1 0 0 0 0<br> 24 38 1 0 0 0 0<br> 24 39 1 0 0 0 0<br> 24 40 1 0 0 0 0<br> 25 30 1 0 0 0 0<br> 26 31 2 0 0 0 0<br> 27 32 2 0 0 0 0<br> 27 44 1 0 0 0 0<br> 28 45 1 0 0 0 0<br> 28 46 1 0 0 0 0<br> 28 47 1 0 0 0 0<br> 29 48 1 0 0 0 0<br> 29 49 1 0 0 0 0<br> 29 50 1 0 0 0 0<br> 30 33 2 0 0 0 0<br> 32 33 1 0 0 0 0<br> 32 52 1 0 0 0 0<br> 33 53 1 0 0 0 0<br>M END
Compound Name
Oxytetracycline
CID
5280972
Molecular Formula
C22H24N2O9
Molecular Weight
460
No. Hydrogen Bond Acceptors
11
No. Hydrogen Bond Donors
7
