Lux i-Amylose-1 Chiral LC Columns
Lux i-Amylose-1 Chiral LC columns allow for greater solvent stability and enantiomeric stability
Lux i-Amylose-1 Chiral LC Columns
Lux i-Amylose-1 Chiral LC Columns
Your New First Choice Chiral Column!
The immobilization and bonding technology used within the Lux i-Amylose-1 promotes column stability in strong organic solvents, which affords you the ability to expand your chiral separation success with more solvent systems and separation modes.
- Wide Solvent Flexibility
- Broad Enantioselectivity
- Strong Solvent Compatibility
Separation Mode Chiral |
Phase Composition Regenerated Cellulose (RC) |
Recommended Use Separation of enantiomers and racemic mixtures by reversed phase, normal phase, polar organic and SFC with a fully porous particle, immobilized with a polysaccharide stationary phase. This Immobilization provides additional strong organic solvent ruggedness so that DCM, DMSO and other related strong solvents can be used on column. |
The Lux i-Amylose-1, like the rest of the Lux product line, is an incredibly versatile phase that has been manufactured and
developed to give you your desired results again and again. This is especially true under harsh conditions where coated phases are unable to perform.
Lower pressure, all purpose particle size for analytical LC (HPLC) or SFC methods and especially for high performance preparative LC or SFC purification work.
developed to give you your desired results again and again. This is especially true under harsh conditions where coated phases are unable to perform.
Lower pressure, all purpose particle size for analytical LC (HPLC) or SFC methods and especially for high performance preparative LC or SFC purification work.

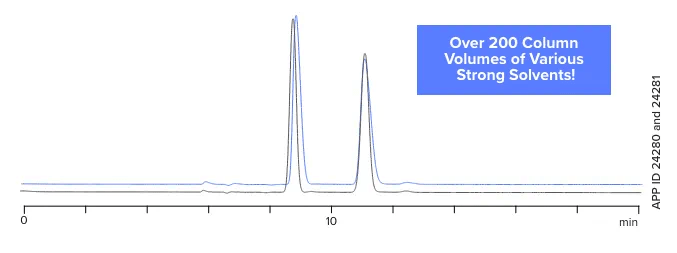

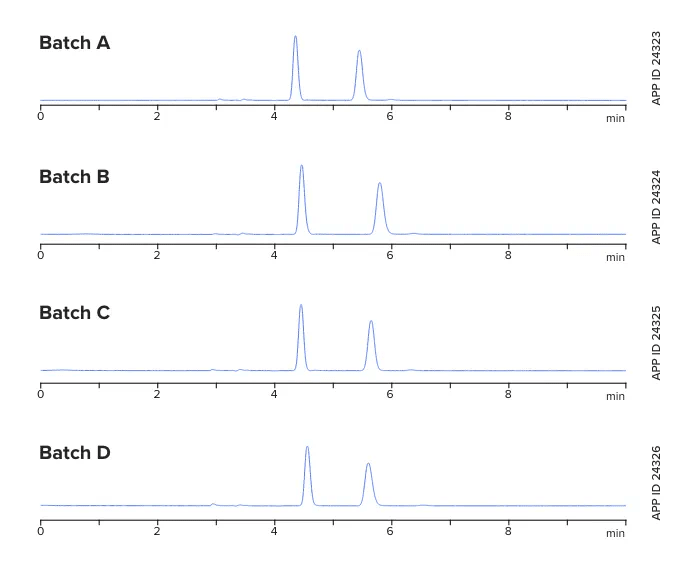

Strong Solvent Stability and Reproducibility
Our highest standards of quality will ensure that you are fully satisfied with each and every Lux chiral column as consistent quantitation and results come with every Lux batch and column that we manufacture.
Lux 5 µm i-Amylose-1
Conditions:
Column:
Lux 5 µm i-Amylose-1 |
Dimension:
250 x 4.6 mm |
Part No.:
00G-4762-E0 |
Mobile Phase:
0.1 % DEA in Hexane / 0.1 % DEA in IPA (90:10) |
Flow Rate:
1 mL/min |
Temperature:
22 ˚C |
Detection:
UV @ 260 nm |
Sample:
Mianserin |
Column Exposed to:
1. MtBE2. Dichloromethane 3. Ethyl Acetate 4. THF 5. Hexane 6. Methanol 7. Ethanol 8. Isopropanol |
Conditions for all columns:
Column:
Lux 5 µm i-Amylose-1 |
Dimension:
250 x 4.6 mm |
Part No.:
00G-4762-E0 |
Mobile Phase:
0.1 % DEA in Hexane / 0.1 % DEA in IPA (90:10) |
Flow Rate:
1 mL/min |
Temperature:
Ambient |
Detection:
UV @ 260 nm |
Sample:
Mianserin |

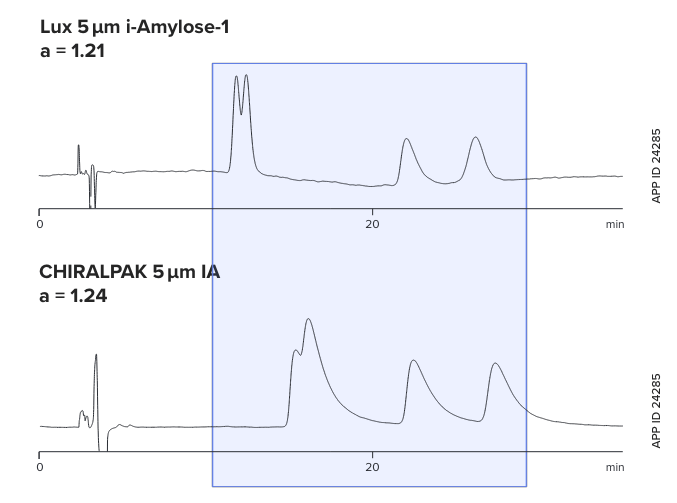

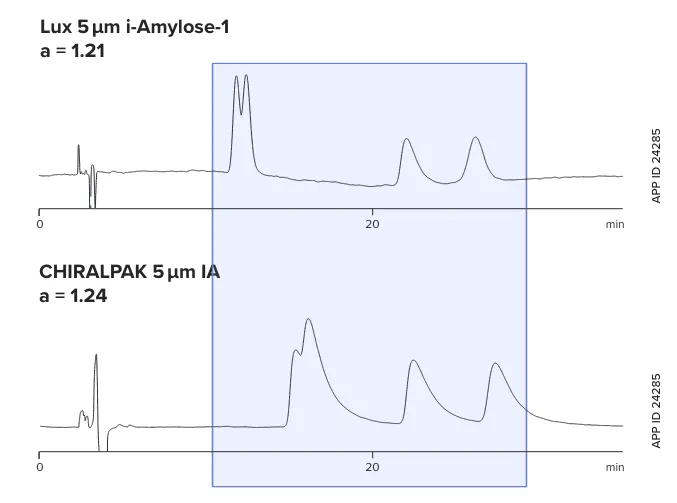

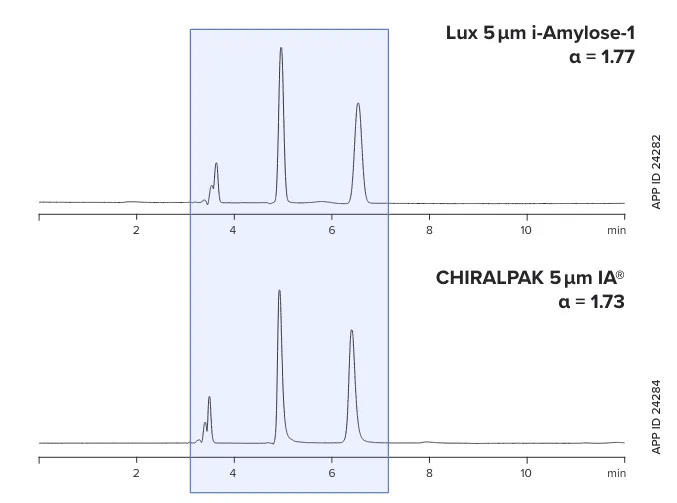

Guaranteed Alternative to CHIRALPAK® IA®
Conditions for both columns:
Dimension:
250 x 4.6 mm |
Mobile Phase:
0.1 % DEA in Hexane / 0.1 % DEA in IPA (90:10) |
Flow Rate:
1 mL/min |
Temperature:
Ambient |
Detection:
UV @ 270 nm |
Sample:
Tramadol |
Conditions for both columns:
Dimension:
250 x 4.6 mm |
Mobile Phase:
0.1 % DEA in Hexane / 0.1 % DEA in IPA (85:15) |
Flow Rate:
1 mL/min |
Temperature:
Ambient |
Detection:
UV @ 230 nm |
Sample:
Nadolol |
Normal Phase
Conditions:
Dimension:
250 x 4.6 mm |
Part No.:
00G-4762-E0 |
Mobile Phase:
0.1 % DEA in Hexane / 0.1 % DEA in IPA (90:10) |
Flow Rate:
1 mL/min |
Temperature:
Ambient |
Detection:
UV @ 260 nm |
40 % Ethyl Acetate
Conditions:
Dimension:
250 x 4.6 mm |
Part No.:
00G-4762-E0 |
Mobile Phase:
0.1 % DEA in Hexane / 0.1 % DEA in Ethyl Acetate (60:40) |
Flow Rate:
1 mL/min |
Temperature:
Ambient |
Detection:
UV @ 220 nm |
Normal Phase
Conditions:
Dimension:
250 x 4.6 mm |
Part No.:
00G-4762-E0 |
Mobile Phase:
0.1 % TFA in Hexane / 0.1 % TFA in IPA (90:10) |
Flow Rate:
1 mL/min |
Temperature:
Ambient |
Detection:
UV @ 254 nm |
100 % Methanol
Conditions:
Dimension:
250 x 4.6 mm |
Part No.:
00G-4762-E0 |
Mobile Phase:
Methanol |
Flow Rate:
1 mL/min |
Temperature:
Ambient |
Detection:
UV @ 230 nm |
35 % DCM
Conditions:
Dimension:
250 x 4.6 mm |
Part No.:
00G-4762-E0 |
Mobile Phase:
0.1 % TFA in Hexane / 0.1 % TFA in Dichloromethane (65:35) |
Flow Rate:
1 mL/min |
Temperature:
Ambient |
Detection:
UV @ 254 nm |
30 % THF
Dimension:
250 x 4.6 mm |
Part No.:
00G-4762-E0 |
Mobile Phase:
0.1 % TFA in Hexane / 0.1 % TFA in THF (70:30) |
Flow Rate:
1 mL/min |
Temperature:
Ambient |
Detection:
UV @ 254 nm |
| If you are using one of the DAICEL columns below: | Guaranteed alternative: |
Phase description: |
|---|---|---|

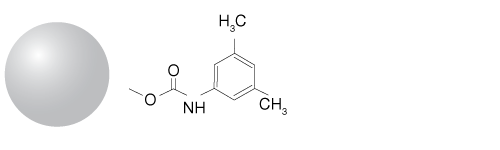

| CHIRALPAK® IA® | Lux i-Amylose-1 | Amylose tris(3,5-dimethylphenylcarbamate) |
| CHIRALPAK IG® and IG-3 | Lux i-Amylose-3 | Amylose tris(3-chloro-5-methylphenylcarbamate) |
| CHIRALPAK IC® and IC-3 | Lux i-Cellulose-5 | Cellulose tris(3,5-dichlorophenylcarbamate) |
| CHIRALPAK AD®, AD-H®, AD-3, AD-RH®, and AD-3R | Lux Amylose-1 | Amylose tris(3,5-dimethylphenylcarbamate) |
| CHIRALPAK AY®, AY-H®, AY-3, AY-RH, and AY-3R | Lux Amylose-2 | Amylose tris(5-chloro-2-methylphenylcarbamate) |
| CHIRALCEL® OD®, OD-H®, OD-3, OD-RH®, and OD-3R | Lux Cellulose-1 | Cellulose tris(3,5-dimethylphenylcarbamate) |
| CHIRALCEL OZ, OZ-H®, OZ-3, OZ-RH, and OZ-3R | Lux Cellulose-2 | Cellulose tris(3-chloro-4-methylphenylcarbamate) |
| CHIRALCEL OJ®, OJ-H®, OJ-3, OJ-RH®, and OJ-3R | Lux Cellulose-3 | Cellulose tris(4-methylbenzoate) |
| CHIRALCEL OX-H, OX-3, OX-RH, and OX-3R | Lux Cellulose-4 | Cellulose tris(3-chloro-4-methylphenylcarbamate) |
Achieve Greater Chiral Separation Success
Phenomenex is a technology leader committed to developing novel analytical chemistry solutions that solve the separation and purification challenges of researchers worldwide.
