Biozen Intact XB-C8<br class="t-last-br" />
Biozen Intact XB-C8 core-shell UHPLC columns provide extremely for impurity profiling and characterization of intact biologic fragments
Biozen Intact XB-C8
Biozen Intact XB-C8
Impurity profiling and characterization of intact biologic fragments is a challenging undertaking because of the need to identify very small differences between variants. Both bioZen Intact columns contain skillfully manufactured large pore core-shell particles that provide narrower, taller peaks in conjunction with higher resolution between the target HC/LC, Fc/Fab, or isoforms.
Separation Mode Reversed Phase |
Pore Size 200 |
Particle Size 3.6 |
Recommended Use Fast separation of intact and subunit separation with hydrophobic selectivity |
Minimize your priming with our BioTi™ Biocompatible hardware
|
Columns:
|
|
Dimension:
150 x 4.6 mm
|
|
Mobile Phase:
50 mM Dipotassium Phosphate + 100 mM
Sodium Sulfate, pH 5.0
|
|
Flow Rate:
0.3 mL/min
|
|
Temperature:
Ambient
|
|
Detection:
UV @ 280 nm
|
|
Sample:
1. γ-Globulin, 5 mg/mL
2. Ovalbumin, 1 mg/mL |
Intact and Fragment Analysis
Impurity profiling and characterization of intact biologic fragments is a challenging undertaking because of the need to identify very small differences between variants. Both bioZen Intact columns contain skillfully manufactured large pore core-shell particles that provide narrower, taller peaks in conjunction with higher resolution between the target HC/LC, Fc/Fab, or isoforms.

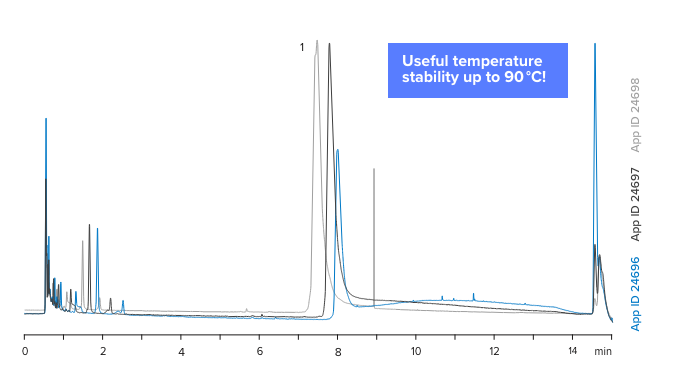

Intact Trastuzumab at 70, 80, and 90°C
|
Column:
bioZen 3.6 µm Intact XB-C8
|
|
|
Dimension:
00F-4766-AN
|
|
|
Part No.:
150 x 2.1 mm
|
|
|
Mobile Phase:
A: 0.1 % TFA in Water
B: 0.1 % TFA in Acetonitrile |
|
|
Gradient:
Time (min)
0
1 13 |
% B
20
20 45 |
|
Flow Rate:
0.5 mL/min
|
|
|
Temperature:
 70 °C 80 °C 90 °C |
|
|
Detection:
UV @ 280 nm
|
|
|
Sample:
1. Trastuzumab
|
|

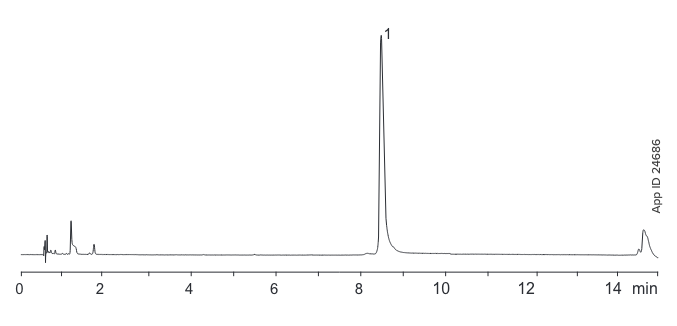

Infliximab F(ab)2
|
Column:
bioZen 3.6 µm Intact XB-C8
|
|
|
Dimension:
150 x 2.1 mm
|
|
|
Part No.:
00F-4766-AN
|
|
|
Mobile Phase:
A: 0.1 % TFA in Water
B: 0.1 % TFA in Acetonitrile |
|
|
Gradient:
Time (min)
0
1 13 |
% B
20
20 60 |
|
Flow Rate:
0.5 mL/min
|
|
|
Temperature:
80 °C
|
|
|
Detection:
UV @ 280 nm
|
|
|
Sample:
1. Infliximab F(ab)2
|
|
Cetuximab
Column:
bioZen 3.6 µm Intact XB-C8
|
|
Dimension:
150 x 2.1 mm
|
|
Part No.:
00F-4766-AN
|
|
Mobile Phase:
A: 0.1 % TFA in Water B: 0.1 % TFA in Acetonitrile |
|
Gradient:
Time (min)
0
1 13 | % B
20 20 45 |
Flow Rate:
0.5 mL/min |
|
Temperature:
80 °C |
|
Detection:
UV @ 280 nm |
|
Sample:
1. Cetuximab |
|
Drug Antibody Ratio (DAR)
With a direct effect on efficacy and safety, conjugation for each ADC must be well understood. The bioZen Intact XB-C8 provides an excellent vehicle for determining drug load distribution and DAR for ADCs. Its large pore size allows intact ADCs to interact with a moderately retentive stationary phase while the core-shell particle supplies increased efficiency to deliver the required resolution between ADC species with differing drug loads.
Herceptin—vcMMAE using bioZen 3.6 µm Intact XB-C8
Herceptin—mcMMAF using bioZen 3.6 µm Intact XB-C8

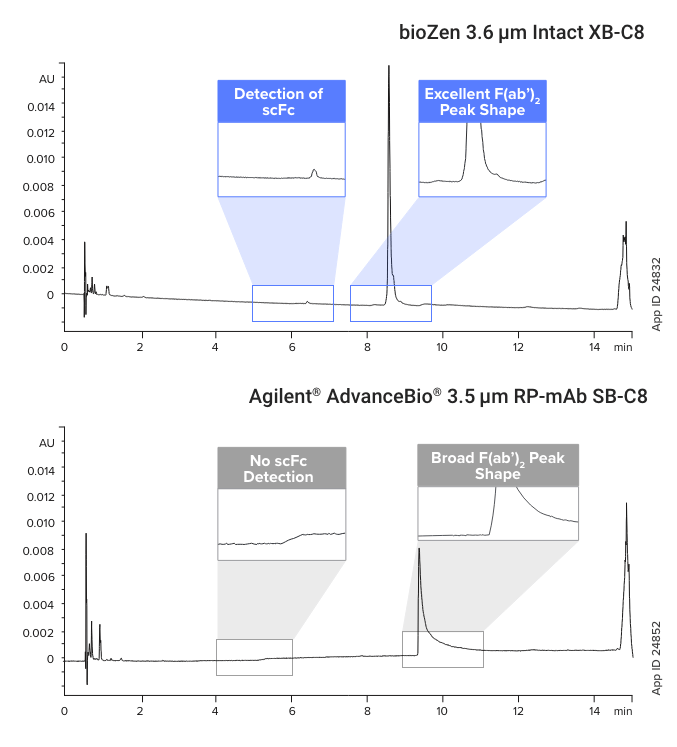

scFc and F(ab’)2
Our bioZen Intact XB-C8 column shows improved peak shape and scFc detection.
Comparative separations may not be representative of all applications.
Conditions for all columns:
|
Columns:
bioZen 3.6 μm Intact XB-C8
Agilent 3.5 μm AdvanceBio RP-mAb SB-C8 |
|
Dimension:
150 x 2.1 mm
|
|
Mobile Phase:
A: 0.1 % TFA in Water
B: 0.1 % TFA in Acetonitrile |
|
Gradient:
20-45 % B in 12 minutes
|
|
Flow Rate:
0.5 mL/min
|
|
Temperature:
80 °C
|
|
Detection:
UV @ 280 nm
|
|
Injection Volume:
1 µL
|
|
Sample:
Cetuximab
|

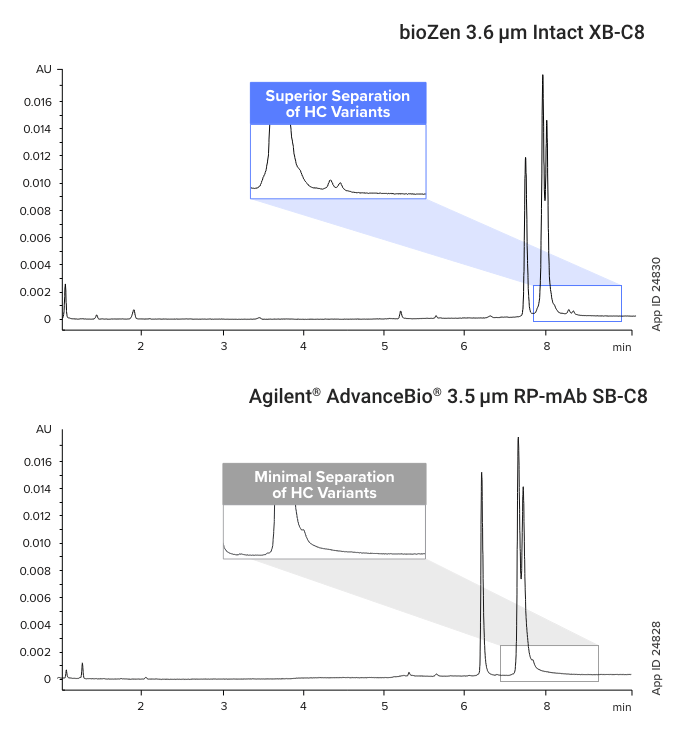

Heavy Chain, Light Chain Analysis
Observe excellent separation of heavy chain variants using the bioZen™ Intact XB-C8 column in your mAb intact fragment analysis.
Conditions for all columns:
|
Columns:
bioZen 3.6 μm Intact XB-C8
Agilent 3.5 μm AdvanceBio RP-mAb SB-C8 |
|
Dimension:
150 x 2.1 mm
|
|
Mobile Phase:
A: 0.1 % TFA in Water
B: 0.1 % TFA in Acetonitrile |
|
Gradient:
20-45 % B in 12 minutes
|
|
Flow Rate:
0.5 mL/min
|
|
Temperature:
80 °C
|
|
Detection:
UV @ 280 nm
|
|
Injection Volume:
1 µL
|
|
Sample:
Cetuximab
|
Distilled Alcohol Standard by Neat Injection on GC-FID
Comparative separations may not be representative of all applications.
Conditions for all columns:
|
Columns:
bioZen 3.6 μm Intact XB-C8
Agilent 3.5 μm AdvanceBio RP-mAb SB-C8 |
|
Dimension:
150 x 2.1 mm
|
|
Mobile Phase:
A: 0.1 % TFA in Water
B: 0.1 % TFA in Acetonitrile |
|
Gradient:
20-45 % B in 12 minutes
|
|
Flow Rate:
0.5 mL/min
|
|
Temperature:
80 °C
|
|
Detection:
UV @ 280 nm
|
|
Injection Volume:
1 µL
|
|
Sample:
1. Rituximab
|
