Phenogel Linear(2) GPC/SEC Columns
Phenogel Linear(2) GPC/SEC columns have a molecular weight range from 100-1,000K
Phenogel Linear(2) GPC/SEC Columns
Phenogel Linear(2) GPC/SEC Columns
- Molecular Weight Range: 100 - 10,000 K
- Linear calibration to 10 million Daltons, excellent for analyzing a wide range of molecular weights
- Long column lifetime and excellent mechanical stability
- Wide range of solvent compatibility: packed in tetrahydrofuran (THF); additional shipping solvents (i.e. DMF, Toluene, Chloroform, and others) available on request
- Temperature stable to 140 °C
Particle Size 5, 10 |
Recommended Use Separation of high MW polymers (100 - 10,000 K MW) |
Nylon 6 in HFIP
Columns:
Phenogel 10 µm Linear(2) x 2 |
Dimension:
300 x 7.8 mm |
Part No.:
00H-3260-K0 |
Mobile Phase:
HFIP (0.01 M NATFAT) |
Flow Rate:
1 mL/min |
Temperature:
30 °C
|
Detection:
Differential Refractometer
|
Injection Volume:
100 µL 0.025% w/v
|
Sample:
14,500 MW
|

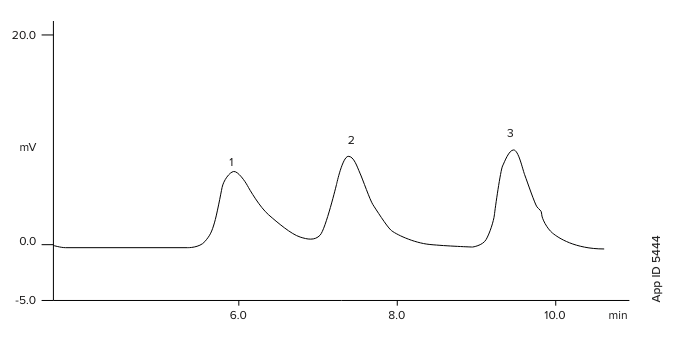

Mixed Polystyrene Standard on Linear(2) Column
Columns:
Phenogel Phenogel 5 µm Linear(2) |
Dimension:
300 x 7.8 mm |
Part No.:
00H-3259-K0 |
Mobile Phase:
THF |
Flow Rate:
1 mL/min |
Temperature:
35 °C
|
Detection:
RI
|
Injection Volume:
50 µL
|
Sample:
Polystyrene standards injected
1. 2,860,000 MW 2. 277,000 MW 3. 9,350 MW |
Applications on Phenogel Linear(2) Non Aqueous
GPC/SEC Columns
GPC/SEC Columns
