Phenogel Linear(2) GPC/SEC Columns
- Molecular Weight Range: 100 - 10,000 K
- Linear calibration to 10 million Daltons, excellent for analyzing a wide range of molecular weights
- Long column lifetime and excellent mechanical stability
- Wide range of solvent compatibility: packed in tetrahydrofuran (THF); additional shipping solvents (i.e. DMF, Toluene, Chloroform, and others) available on request
- Temperature stable to 140 °C
HPLC
69
256
phenogel-gpc-column
phenogel-linear2
smooth-scroll-vertical-tabs
Overview
Applications on Phenogel Linear(2) Non Aqueous GPC/SEC Columns

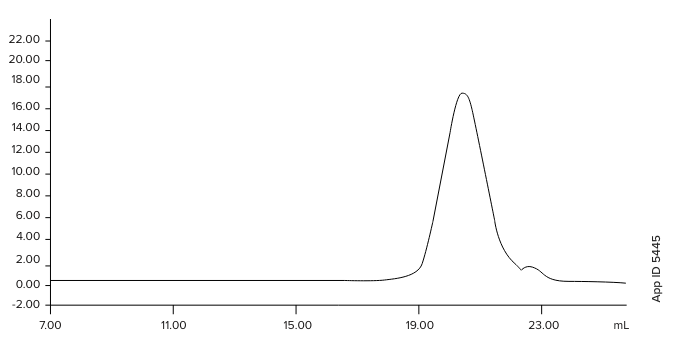

Nylon 6 in HFIP
Columns:
Phenogel 10 µm Linear(2) x 2
Dimension:
300 x 7.8 mm
Flow Rate:
1 mL/min
Temperature:
30 °C
Detection:
Differential Refractometer
Mobile Phase:
HFIP (0.01 M NATFAT)
Part No.:
00H-3260-K0
Injection Volume:
100 µL 0.025% w/v
Sample:
14,500 MW

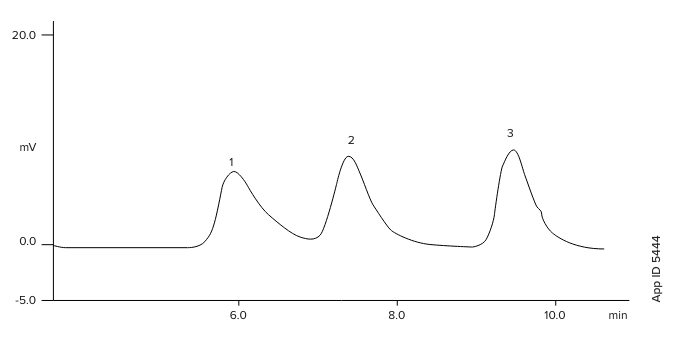

Mixed Polystyrene Standard on Linear(2) Column
Columns:
Phenogel Phenogel 5 µm Linear(2)
Dimension:
300 x 7.8 mm
Flow Rate:
1 mL/min
Temperature:
35 °C
Detection:
RI
Mobile Phase:
THF
Part No.:
00H-3259-K0
Injection Volume:
50 µL
Sample:
Polystyrene standards injected
1. 2,860,000 MW
2. 277,000 MW
3. 9,350 MW
