Strata-X-Drug B and Strata-X-Drug B Plus SPE Products
Quick and In-Well Hydrolysis Solid Phase Extraction (SPE)
Proprietary sorbent that is designed and quality controlled for basic drugs of abuse analysis. This sorbent does not require a conditioning/equilibration step to save time and help improve throughput. With Strata-X-Drug B Plus, the hydrolysis step is performed in the well, providing even more time savings and reducing transfer steps.
- QC Tested for Drug of Abuse
- No Conditioning or Equilibration Steps Required
SP
292
2130
strata-x-solid-phase-extraction-products
strata-x-drug-n
smooth-scroll-vertical-tabs
Overview
General Extraction
- Extract over 11 drugs using the same sorbent
- Consolidate methods; 3 methods is all you’ll need to extract 6 different drug classes
- Time and solvent savings; no conditioning required
- Consistent, sensitive, and high recoveries of SAMHSA regulated drugs
Retention Mechanism

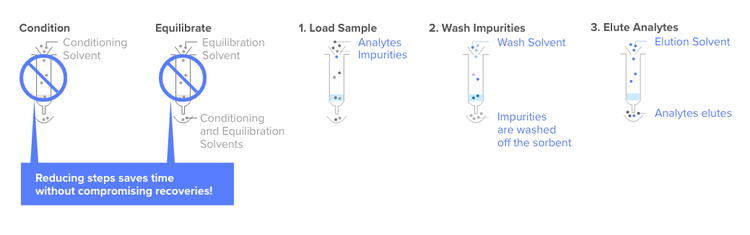

Strata-X Drug B Protocol

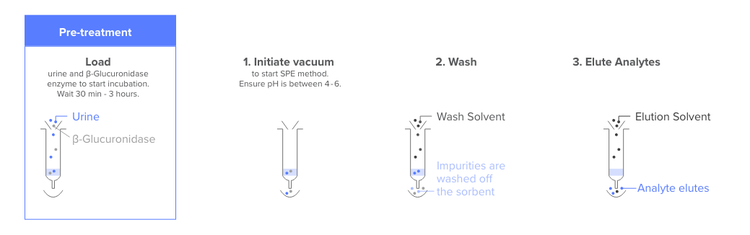

Strata-X Drug B Plus Protocol
Starting Method
General Urine Pre-treatment Recommendation
- Combine urine sample with appropriate buffer.
- Add β-Glucuronidase enzyme according to manufacturer’s recommendation (If using Strata-X-Drug B Plus, these steps can be performed in-well).
- Incubate for specified amount of time (If using Strata-X-Drug B Plus, pulse vacuum to load solution onto sorbent).
- Follow appropriate SPE protocol based on analytes of interest.
Choose Your Analytes
Opiates, 6-MAM, PCP, Amphetamines, Propoxyphene, Healthcare Opiates,
and Methadone*
Marijuana Metabolites
Cocaine Metabolites
Condition
Not Required
Not Required
Not Required
Load
Pre-treated urine sample
Pre-treated urine sample
Pre-treated urine sample
Wash 1
600 µL of 100 mM Sodium acetate buffer (pH 5.0)
600 µL of 100 mM Sodium acetate buffer (pH 5.0)
600 µL of 0.1 N Hydrochloric acid
Wash 2
600 µL Methanol
600 µL of Acetonitrile/100 mM Sodium acetate buffer (pH 5.0) (30:70)
600 µL Methanol
Dry
10 minutes under full vacuum
15 minutes under full vacuum
10 minutes under full vacuum
Elute
2x 300 µL of Ethyl acetate/Isopropanol/
Ammonium hydroxide (70:20:10)
Ammonium hydroxide (70:20:10)
2x 300 µL of Ethyl acetate/Isopropanol
(85:15)
(85:15)
2x 300 µL of Ethyl acetate/Isopropanol/
Ammonium hydroxide (70:20:10)
Ammonium hydroxide (70:20:10)
* Opiates, 6-MAM, PCP, Amphetamines, Propoxyphene, Healthcare Opiates, and Methadone can be extracted simultaneously or separately using the same SPE methodology. Methods are written for 30 mg/well Strata-X-Drug B 96-well plate; however they can be scaled to accommodate smaller or larger sample sizes and sorbent masses.
