Size‑exclusion chromatography (SEC) follows a common set of operating principles that apply across a wide range of applications, from globular proteins to synthetic polymers. One of the fundamental considerations in any SEC method is the balance between injection volume and sample concentration, both of which have a direct impact on peak shape, resolution, and sensitivity.

Because SEC relies on physical size rather than chemical interaction, the influence of these parameters is often more pronounced than in other chromatographic modes.

In SEC, analytes are separated strictly according to their hydrodynamic size. The mobile phase and sample diluent are selected to minimize interactions between the analyte and the stationary phase, allowing separation to occur solely through differential access to the pore structure. Larger molecules are excluded from more pores and elute earlier, while smaller molecules penetrate more of the pore volume and elute later.

Since there are no retention or focusing mechanisms involved, the analyte band entering the column largely determines the final peak shape.

Injection volume and band broadening

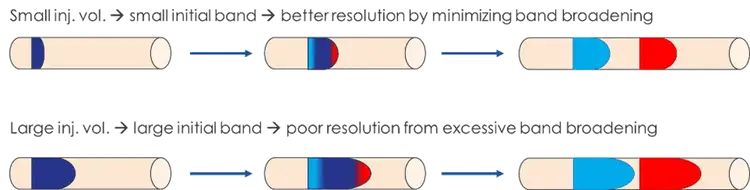

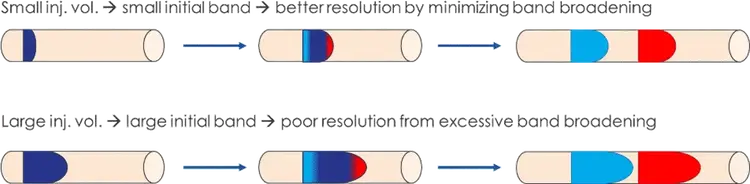

When a sample is injected into an SEC column, it enters as a finite band whose length is proportional to the injection volume. Unlike reversed‑phase or ion‑exchange chromatography, this band does not compress at the head of the column.

As separation proceeds, molecular diffusion further broadens the band (Figure 1). Because SEC offers no mechanism to counteract this spreading, excessive injection volume directly results in wider peaks and reduced resolution.

For optimal performance, injection volume should therefore be kept as small as practical.

Reducing injection volume often leads to reduced detector response. A common strategy to recover sensitivity is to increase sample concentration; however, this approach introduces important limitations.

At elevated concentrations, viscosity differences between the sample solution and mobile phase can cause unstable flow patterns during injection. This phenomenon, known as Saffman–Taylor instability, can distort sample bands and degrade peak shape, as illustrated in Figure 2.

As a result, SEC methods must operate within a practical concentration range to avoid compromising chromatographic performance.

Successful SEC methods balance injection volume and sample concentration to achieve acceptable sensitivity without sacrificing resolution. Protein samples are generally more tolerant of higher concentrations, and concentrations in the range of 1–10 mg/mL often provide good results when paired with appropriately small injection volumes.

In most cases, reducing injection volume yields immediate improvements in peak shape, while sample concentration should be increased only to the extent necessary to meet detection requirements.

Injection volume and sample concentration are interdependent parameters that play a critical role in SEC performance. Large injection volumes increase band broadening, while excessive sample concentrations can introduce viscosity‑related artifacts.

Optimizing these parameters allow analysts to improve SEC results without changing columns, mobile phases, or instrumentation.
