Gas chromatography (GC) users have been plagued with ghost peaks in a chromatogram from time to time. The key, then, is to determine the source of these unwanted peaks and eliminate them. We know, we know ... Easier said than done. Possible sources of unexpected peaks can come from nearly everywhere, ranging from, but not limited to, incorrect sample preparation, electronic noise, accidental contaminants, and sample carryover left in the detector, column, syringe, or inlet. A common source of additional peaks in a chromatogram, most troubling for column manufacturers, is septum bleed. It is typical to install a new septum in the inlet of a new column; however, a new and unconditioned septum can often be a source of contamination that will result in peaks in the chromatogram. Users see the additional peaks and instantly blame them on the column as the peaks were not present before the column was installed.

Chromatographers with mass spectra identification can even identify the peaks as silicon-containing compounds, realize that the stationary phase of the column contains silicon, and further convince themselves that the column is bad. In reality, the peaks seen in the spectrum are actually due to septum bleed. Septa are made of the same polymers that comprise the stationary phase of the column-giving compounds that would be similar to column-bleed compounds.

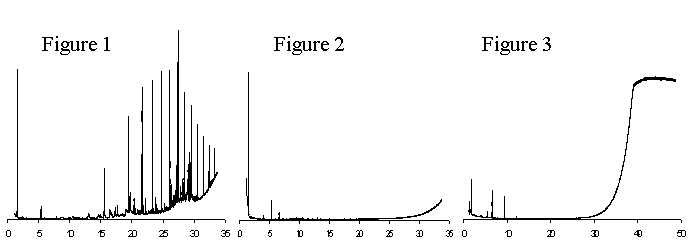

The fact that peaks are seen shows that the compounds are being separated by the column, which means that they were introduced in the front of the column. If the column was bleeding, peaks would not be seen as the column would bleed from the whole length of the column at the same time and would not result in a peak, but a general rise in the baseline as the temperature increases. Presented below, Figure 1 shows a chromatogram of septum bleed, whereas Figure 2 shows a normal baseline chromatogram. Figure 3 shows a chromatogram where the phase has been intentionally ruined to show column bleed.

Septum bleed in gas chromatography occurs when volatile compounds from the GC injector septum enter the carrier gas stream during analysis.

A GC septum is a small heat-resistant silicone component located in the injector inlet. It allows the autosampler or syringe needle to penetrate the inlet while maintaining a sealed environment for the carrier gas. During injection, the needle punctures the septum and delivers the sample into the heated inlet for vaporization.

Several factors can contribute to septum bleed in GC systems:

• High injector temperatures that thermally degrade silicone materials.
• Low-quality septa that release volatile compounds when heated.
• Mechanical damage from repeated syringe punctures.
• Improper installation or excessive compression.
• Insufficient septum purge flow allowing contaminants to enter the column.

Although often overlooked, septum bleed can significantly affect chromatographic performance and analytical reliability.

Septum bleed typically appears as artifacts which interfere with analyte identification and quantitation, especially in trace-level analyses.

Because the resulting peak patterns can resemble column bleed, analysts may incorrectly replace columns instead of addressing the inlet component responsible for the issue. Chromatographers with mass spectra identification can even identify the peaks as silicon containing compounds, realize that the stationary phase of the column contains silicon, and further cement the notion that the column is bad. In reality, the peaks seen in the spectrum are actually due to septum bleed. Septa are made of the same polymers that comprise the stationary phase of the column giving compounds that would be similar to column bleed compounds.

Diagnosing septum bleed requires careful examination of chromatographic patterns and systematic troubleshooting.

Indicators that the septum may be the contamination source include:

• Peaks appearing in blank injections
• Reproducible siloxane patterns at higher retention times
• Rising baseline at elevated inlet temperatures
• Increase of these peaks with septum aging.

To confirm septum bleed:

• Run a Blank: Start a program without injecting anything. If the peaks remain, the source is inside the GC (likely the septum).
• Extended "Hold" Test: Leave the oven at its starting low temperature for 10–15 minutes before ramping. If the ghost peaks get larger, it’s septum bleed accumulating at the head of the column.
• Check Peak Shape: Sharp, distinct peaks indicate the septum (trapped then eluted). A smooth, rising baseline "hump" indicates column bleed.
• Change Inlet Temp: Increase the injector temperature by 30°C. If the peaks grow while the baseline stays the same, the septum is the culprit.

These steps will help you distinguish septum bleed from column or detector issues.

Preventing septum bleed requires proper inlet maintenance and selecting appropriate septum materials.

High-quality low-bleed septa are designed to tolerate elevated inlet temperatures while minimizing silicone fragment release. These septa are particularly important for high-temperature GC methods and sensitive analyses.

Excessively high injector temperatures accelerate septum degradation. Setting the inlet temperature only as high as necessary for complete sample vaporization reduces thermal stress and extends septum life.

Routine replacement is one of the most effective ways which can help you to prevent septum bleed. Repeated punctures create holes and fragments in the septum material, increasing the likelihood of contamination. Many laboratories replace septa after a defined number of injections or during scheduled maintenance.

Correct installation improves septum performance and longevity:

• Avoid overtightening the inlet nut
• Ensure the septum sits evenly in the injector cap
• Use clean tools during installation
• Bake the septum (conditioning) out at the maximum temperature for an hour or use preconditioned septa.

Proper installation maintains a consistent seal and reduces degradation.

The septum purge removes volatile contaminants from the inlet before they reach the column with a constant stream of carrier gas. If the purge flow is too low, degradation products can migrate into the analytical column. Ensuring proper purge settings helps prevent contamination.

Bent or damaged syringe needles can tear the septum and generate fragments that enter the system. Maintaining syringes and ensuring correct autosampler alignment helps reduce mechanical damage.

Septum bleed can resemble column-related signals; distinguishing between the two is essential during troubleshooting.

Septum bleed is a common source of contamination in gas chromatography systems. Volatile silicone compounds released from the injector septum can produce ghost peaks, baseline noise, and reduced analytical sensitivity. Understanding the causes of septum bleed allows analysts to quickly identify and resolve the issue. Best practices such as using high-quality low-bleed septa, optimizing injector temperature, maintaining proper purge flow, and replacing septa regularly help maintain reliable chromatographic performance. Implementing these practices improves data quality, reduces troubleshooting, and reduces instrument downtime, particularly in laboratories performing high-throughput or high-sensitivity GC analyses.
