Product Information
Phase Detail
Biozen Oligo<br class="t-last-br" />
Biozen Oligo HPLC column provides targeted selectivity for oligos

Biozen Oligo

Advanced Oligonucleotide Analysis

Biozen Oligo is an organo-silica, core-shell particle bonded with a C18 stationary phase. This column offers a unique combination of Core-Shell performance gains such as speed, sensitivity and resolution plus the high pH ruggedness necessary for oligonucleotide separations. Additionally, Biozen Oligo is packaged in BioTi™, a novel bio-inert hardware that serves to alleviate the sample loss and adsorption issues.

Increased Recovery and Reproducibility with NEW Biozen Oligo

  • BioTi™ Hardware Reduces Sample Loss and Adsorption
  • Robustness at High pH and Temperature
  • Core-Shell Advantage for High Efficiency

Separation Mode
Reversed Phase
Pore Size
Particle Size
1.7, 2.6
Recommended Use
Analytical characterization of oligonucleotides

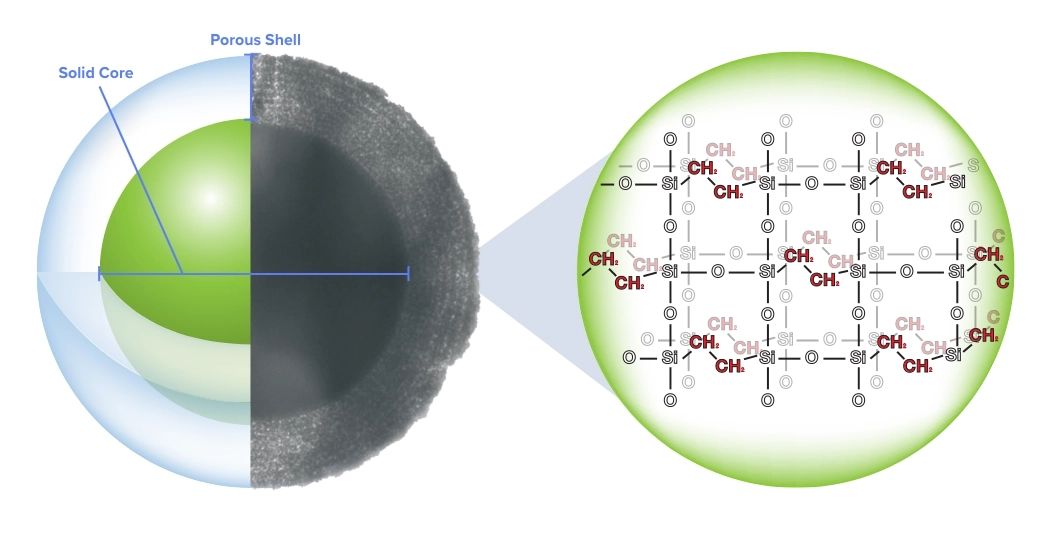

Patented Technology and Advanced Core-Shell Particle Chemistry

Biozen Oligo utilizes organo-silica core-shell technology to:​

  • Minimize band broadening associated with diffusion and oligonucleotide mass transfer kinetics​
  • Increase efficiency to produce narrower peaks, ideal for resolving closely eluting impurities​
  • Patented grafting process ensures high pH and temperature resistance from ethylene cross-linking.​


BioTi versus Traditional Stainless Steel Hardware

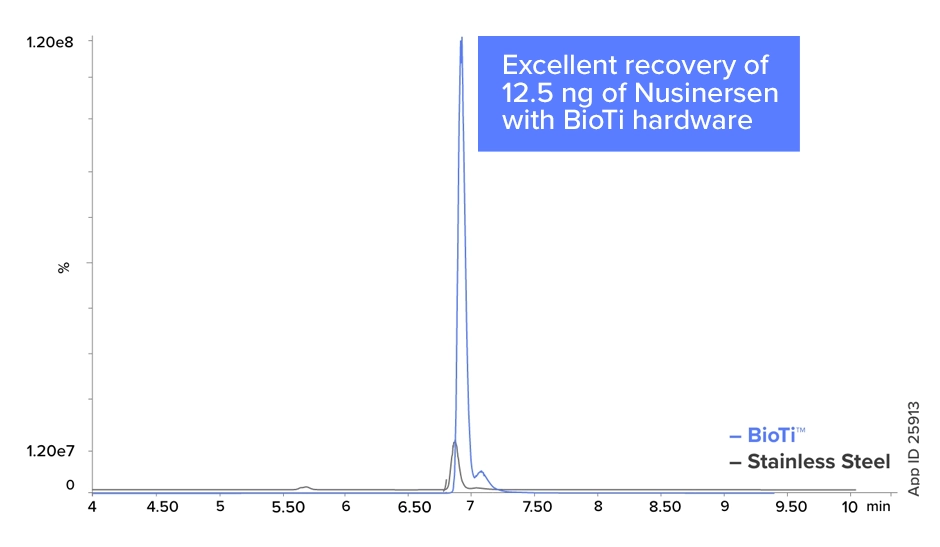

LC-MS Analysis of Nusinersen

Oligos can chelate to trace heavy metals in stainless steel column hardware, leading to poor recovery, inconsistent chromatography and problematic carryover. The Biozen Oligo bio-inert hardware provides greater sensitivity as well as improved recovery, demonstrating this column’s optimal utility for oligonucleotide characterization and quantitation.

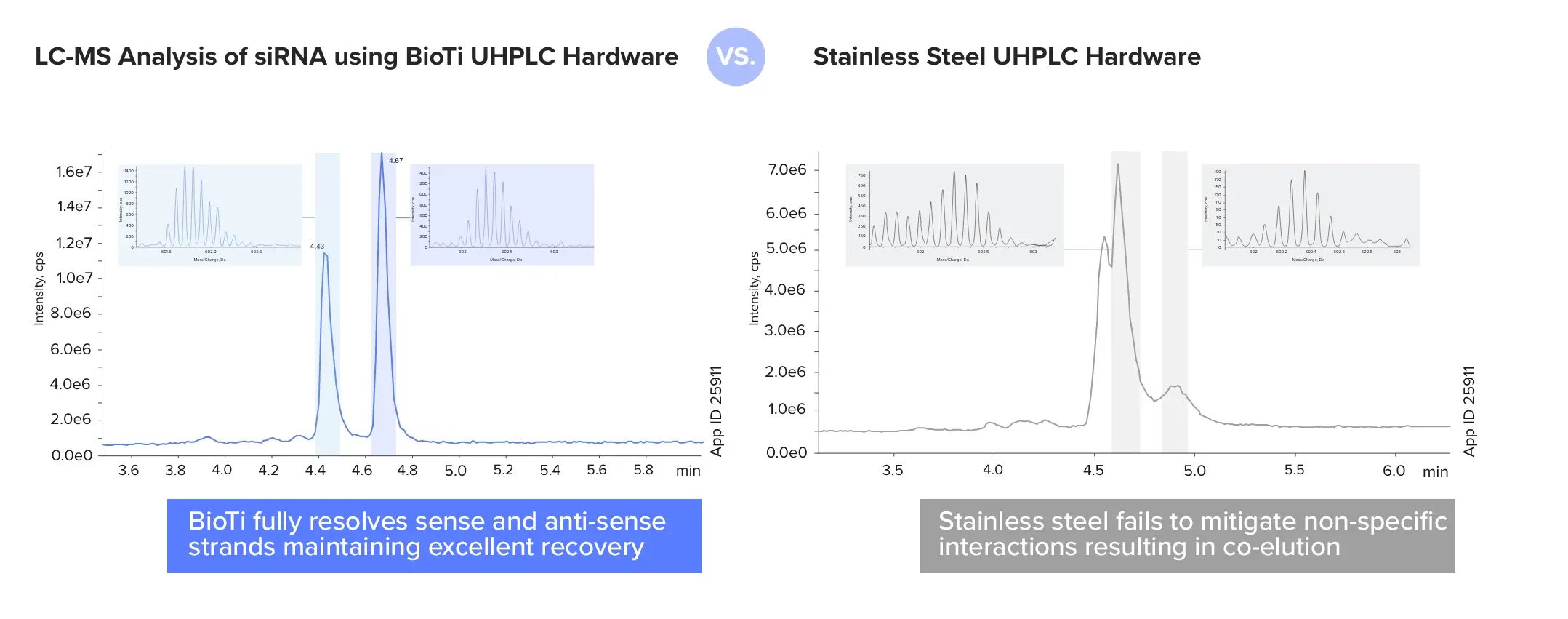

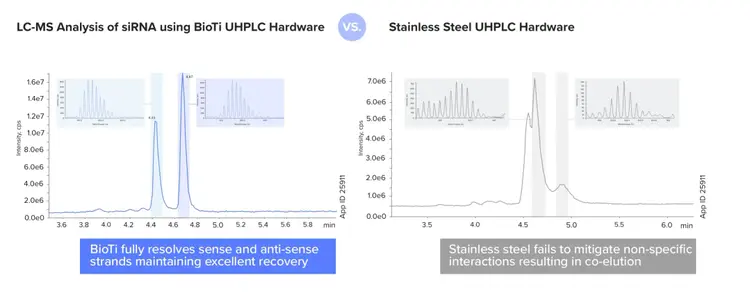

BioTi vs Stainless Steel Column Hardware​

Biozen Oligo's bioinert hardware enhances recovery, sensitivity, and chromatographic reproducibility by mitigating non-specific adsorption. Stainless steel equivalents fails to prevent this resulting in poor recovery, peak tailing, and residual carryover.​
