Luna CN HPLC Columns
Enhance your chromatography research with the Luna CN HPLC Column from Phenomenex. Learn how it improves your analysis with high-quality results.
Luna CN HPLC Columns
Luna CN HPLC Columns
The Luna brand of columns and media is more than just a product line from Phenomenex. It is a pledge to provide you with the highest level of satisfaction for your chromatographic goals. The Luna CN has Nitrile groups bound to the silica surface which offer a unique polar selectivity under reversed phase or normal phase conditions.
- Extensive line of rugged particle sizes
- Easy method scalability from HPLC to preparative and bulk purification LC
- CN Ultra pure, metal-free silica (99.99% purity) (USP:L10)
Carbon Load 7, 7 % |
Surface Area (m²/g) 400 |
Particle Size 3, 5, 10 |
Recommended Use HILIC or normal phase separation of extremely polar compounds or when a cyano phased or L10 |
Long Column Lifetimes and Excellent Performance
Ultra-pure, metal-free silica (99.99 % purity) is the back bone of all Luna material. The resulting high quality particles have a surface smoothness, pore structure, and pore consistency to ensure a more uniform particle shape and greater reproducibility.
Superior Particle Smoothness
Agilent Technologies® ZORBAX®
Waters® Symmetry®
Phenomenex Luna
Proven Reproducibility
For carboxyl‚ carbonyl‚ and amine containing compounds‚ Luna CN columns offer a unique polar selectivity in reversed phase and normal phase modes. Luna CN columns provide sharp peaks and great reproducibility run-to-run‚ column-to-column and batch-tobatch. State of the art modification of the silca surface ensures improved resistance to bonded phase hydrolysis providing one of the most stable CN phases on the market. The result:
- Excellent polar selectivity
- Improved peak shapes
- One of the most stable CN columns under reversed phase or normal phase conditions
- pH stable from 1.5 to 7.0

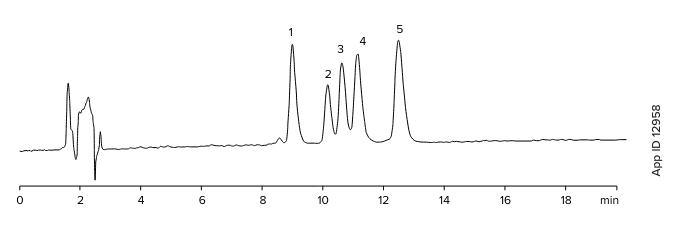

Phthalate Esters
Conditions:
|
Column:
Luna 5 μm CN
|
|
|
Dimension:
150 x 4.6 mm
|
|
|
Part No.:
00F-4255-E0
|
|
|
Mobile Phase:
A: Hexane
B: Methylene chloride/Methanol (80:20)‚ A/B (99:1) |
|
|
Gradient:
Time (min)
0
|
%B
35 |
|
Flow Rate:
1.0 mL/min
|
|
|
Temperature:
Ambient
|
|
|
Detection:
UV @ 254 nm
|
|
|
Sample:
1. Di-n-octyl phthalate
2. Bis (2-Ethylhexyl) phthalate 3. Butylbenzyl phthalate 4. Di-n-butyl phthalate 5. Diethyl phthalate 6. Dimethyl phthalate |
|
