Zebron ZB-WAX GC Columns
Upgrade to Zebron from any polyethylene glycol phase. Zebron ZB-WAX can separate polar complex mixtures for profiling and “fingerprinting”.
Zebron ZB-WAX GC Columns
Zebron ZB-WAX GC Columns
PEG Versatility for Solvents, Acids, and Amines
- Bonded, solvent rinsable phase excellent for separating polar complex mixtures
- GC-MS Certified low bleed levels
- Low activity for amines
- Excellent separations of polar complex mixtures; widely used for profiling and “fingerprinting”
Want enhanced aqueous stability? See ZB-WAXPLUS.
Testing free fatty acids? See ZB-FFAP.
Recommended Applications
The Zebron ZB-WAX columns can be used for Alcohols, Aldehydes, Aromatics, Basic Compounds, Essential Oils, Flavors & Fragrances, Glycols, Pharmaceuticals, Solvents, Styrene, Xylene Isomers
Recommended Use Alcohols, Aldehydes, Aromatics, Basic Compounds, Essential Oils, Flavors & Fragrances, Glycols, Pharmaceuticals, Solvents, Styrene, Xylene Isomers |
Upgrade to Zebron from any polyethylene glycol phase:
| Agilent® | Restek® | SGE | Supelco® |
|---|---|---|---|
| DB®-WAXetr HP-INNOWax CP-Wax 57 CB |
Rtx®-WAX Famewax Stabilwax®-DB |
SolGel-WAX™ | Met-Wax Omegawax |
Performs for Industrial Chemicals

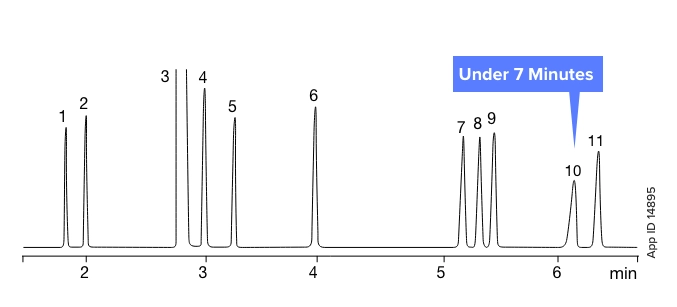

BTEX by GC-FID
|
Columns:
Zebron ZB-WAX
|
|
|
Dimension:
30 meter x 0.32 mm x 0.50 µm
|
|
|
Part No.:
7HM-G007-17
|
|
|
Injection:
Split 20:1 @ 250 °C, 0.2 µL
|
|
|
Carrier Gas:
Helium @ 2 mL/min (constant flow)
|
|
|
Oven Program:
60 °C to 75 °C @ 15 °C/min to 90 °C
@
3 °C/min (hold 3 min) |
|
|
Detector:
FID @ 300 °C |
|
|
Sample:
1. Pentane2. Heptane 3. Solvent (methylene chloride) 4. Benzene 5. Decane 6. Toluene 7. Ethylbenzene 8. p-Xylene 9. m-Xylene 10. Dodecane 11. o-Xylene |
