Claricep Flash Columns
Seamlessly Upgrade to Claricep Flash Chromatography Columns
Available in two flash medias (Irregular and Spherical) with multiple chemistries optimized for resolution and high loading capacity.
Claricep Column
- The deactivated silica surface promotes compound stability
- Excellent peak shape and performance for both acidic and basic compounds
- High quality and reproducibility
- Wide range of selectivities
- High pressure tolerance
Order
Overview
Flash Chemistries/Media
Claricep CM utilizes silica that is further purified with a proprietary acid washing process which results in even lower surface activity to result in an improved peak shape and resolution.
Consistent High Performance: High loading capacity (high surface area > 350m2/g) combined with good resolution for tight band definition (no tailing)
Wide Range of Selectivities: Variety of sorbents to meet any separation needs -(Silica (Si), C18, C8, AQ C18, Phenyl, Cyano (CN), Diol (OH), Amino (NH2) and HILIC (Urea) along with a large variety of cartridge sizes from 4 g to several kilograms allows for purification scale-up from milligrams to kilograms
High Pressure Tolerance: Exceptional durability to withstand high pressures due to closed-top spin-welded technology on standard hardware sizes that allows for pressure up to 12 bar (180 PSI)

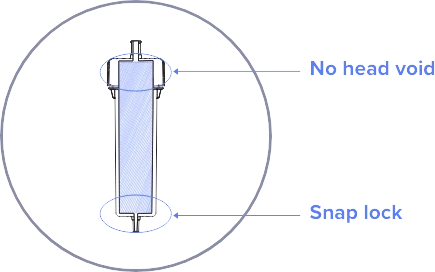

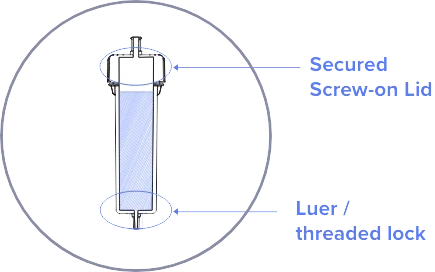

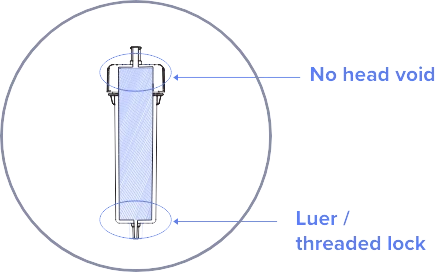

Excellent Hardware: Universal luer fittings for compatibility with any flash system for great compound purity & recovery and 100% guaranteed leak-free.
High Quality: Consistent homogeneous packing allows for no channeling and creates reproducible high plate count (N).

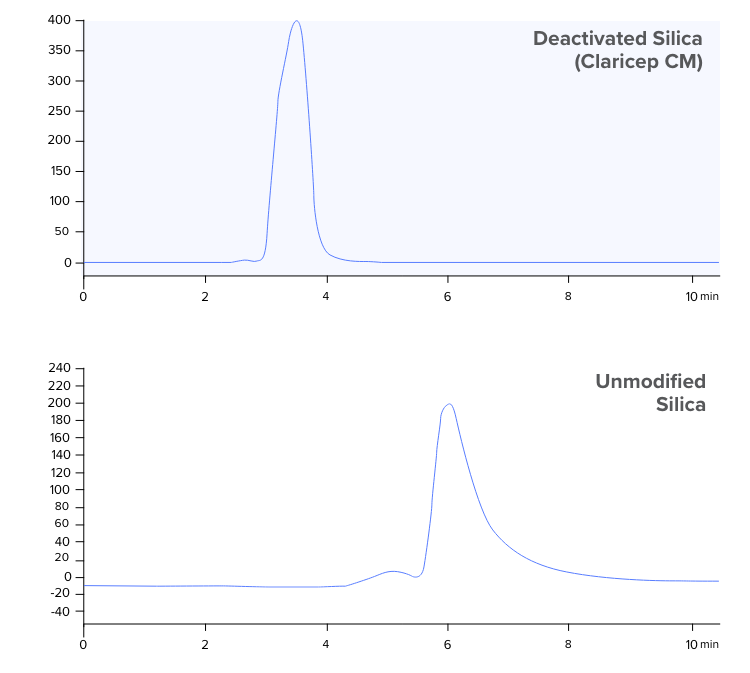

Claricep Deactivated Silica vs Traditional Unmodified Silica
Comparative separations may not be representative of all applications.
Flash Conditions:
Sample
Catechol 100 μg/mL
Irregular Silica Comparison
Ultra pure packing which results in much less abnormal surface activity. This produces chromatograms with much sharper peaks
Aniline Peak Symmetry and Retention Test
Comparative separations may not be representative of all applications.
Flash Conditions:
CLARICEP CS: 4.090 min
Brand I: 4.373 min
Sample
Aniline

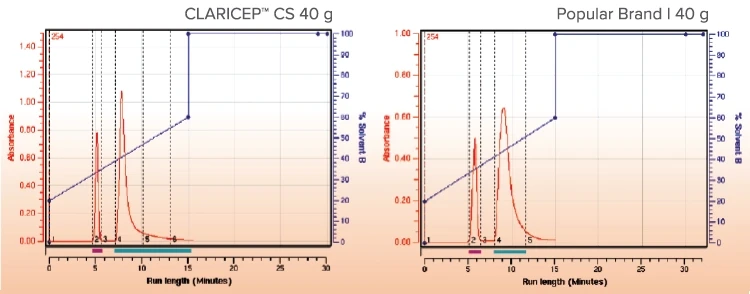

Claricep CS vs. Popular Brand I
Flash Conditions:
(40-60 μm, 60 Å, 40 g)
Sample
Phenyl acetone, 4-aminobenzoic acid
Spherical Silica Comparison
Regular, similar-sized and high quality particles can be packed in a column much more uniformly which reduces eddy flow currents and lateral diffusion. The result is greater peak symmetry and baseline resolution than is possible with irregular silica particles.

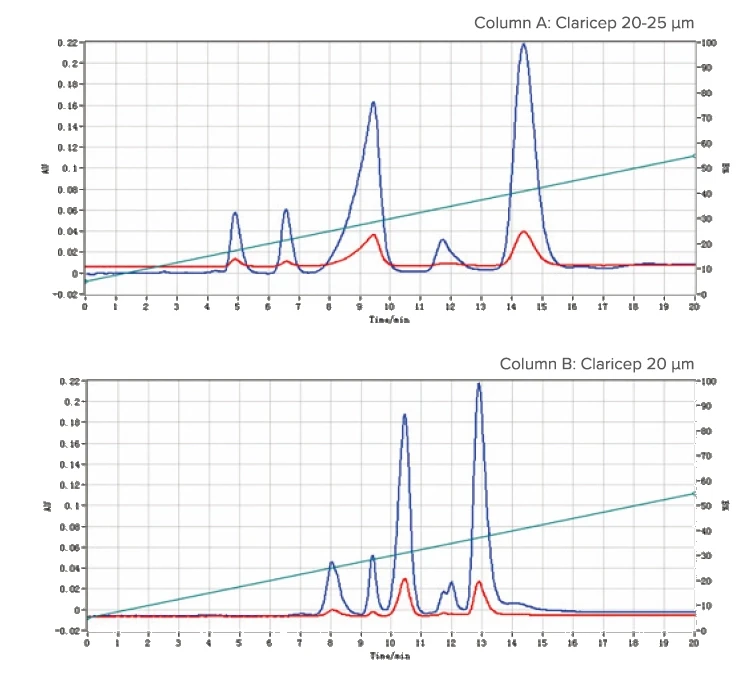

Claricep Spherical Silica 20-30 µm vs. Claricep Spherical Silica 20 µm
Flash Conditions:
Samples:
0.2 mL
