SecurityLINK HPLC/UHPLC Column Connectors
High efficiency and good peak shape are essential to minimize or eliminate dead-volume within any HPLC and UHPLC system. Fitting connections routinely made to the column inlet and outlet are a contributor to additional dead-volume leading to lower than expected efficiency, peak tailing, or misshaped peaks. SecurityLINK HPLC/UHPLC fittings with integrated or external torque limiting technology, provide a convenient solution that eliminates column over- and under tightening which could result in column damage and poor analytical results.
- Better HPLC/UHPLC results with zero dead-volume connections
- Torque limiting technology prevents over and under tightening
- Pressure rated to 19,000 psi (1,310 bar)
Available in two formats:
- SecurityLINK (with integrated torque limiting technology) for all LC applications
- NEW! SecurityLINK ET for precise LC and low flow applications
Order
Overview
About SecurityLINK Technology
The SecurityLINK LC connectors utilize torque-limiting technology that simplifies the system-to-column connection while ensuring proper seal and preventing column damage due to overtightening.

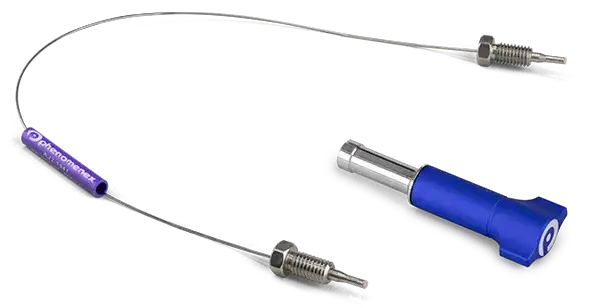

Whether you choose the standard connector with integrated torque limiting (SecurityLINK) or the small footprint connector with torque limiting tool assistance (SecurityLINK ET), you're assured of reliable performance and enhanced security for your LC applications.
- Fingertightening - with integrated torque-limiting technology
- Quick and secure installation
- HPLC compatible
- Zero dead-volume connection
- For all LC applications
- HPLC / UHPLC compatible
- Optimized for precise LC low flow applications
- Zero dead-volume connection
- Fits into small spaces of a system
- Easy install with external torque-limiting tool

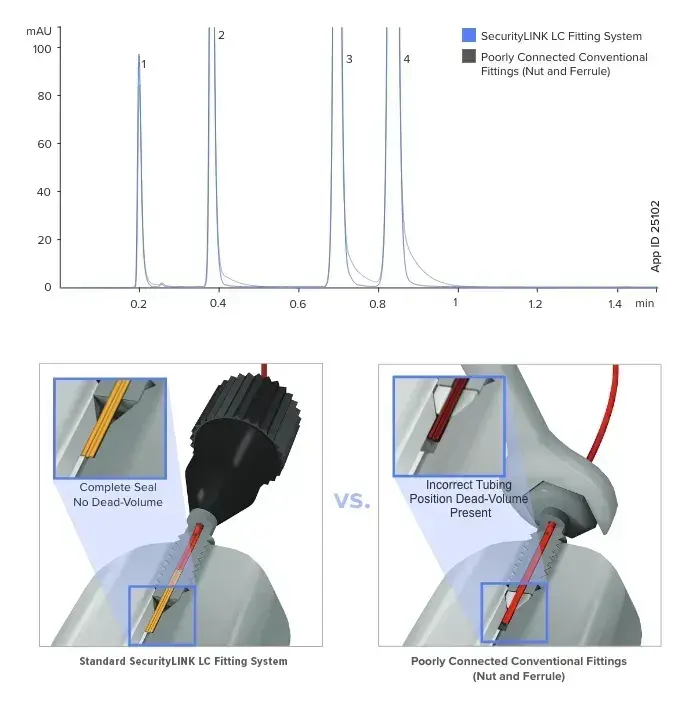

The Dead-Volume Difference
SecurityLINK Connectors vs Conventional Fittings
Poorly connected fittings are often the causes of carryover, band broadening, and peak tailing. Standard SecurityLINK and SecurityLINK ET fittings offer zero dead-volume connections every time.
Conditions for both separations:
Luna™ Omega 1.6 µm C18
Sample:
1. Uracil
2. Acetophenone
3. Toluene
4. Naphthalene

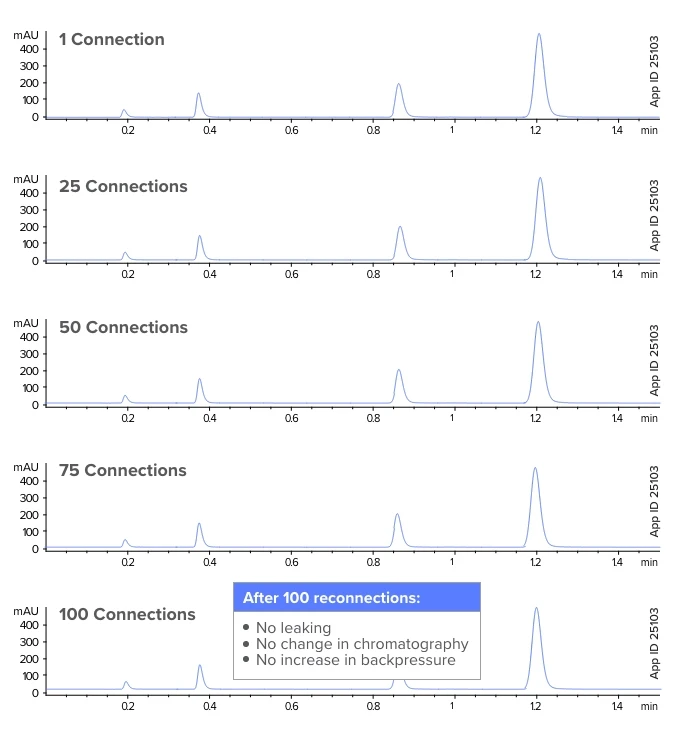

Superior Robustness and Reproducibility
Column Performance
While typical fittings are not cross-column compatible and prone to cause column damage with overtightening, SecurityLINK safely and easily allows you to continuously attach and detach columns. To illustrate the high robustness and durability of the SecurityLINK LC Fitting System, the fitting was disconnected and reconnected 100 times to a highly sensitive sub-2 μm core-shell UHPLC column.
Sample:
1. Uracil
2. Acetophenone
3. Toluene
4. Naphthalene
Compatibility with Column Vendors
Consistent Results with SecurityLINK
SecurityLINK LC Fittings were designed to be compatible with the majority of LC columns and systems that are available on the market. That gives you the ability to utilize this easy to use fitting on each system and with multiple columns. To prove this, the SecurityLINK was evaluated below for compatibility with different column vendors; Phenomenex, Waters®, and Agilent®.
Sample:
1. Uracil
2. Acetophenone
3. Toluene
4. Naphthalene
SecurityLINK PEEKsil UHPLC Fingertight Fitting System Connection
Conventional Nut and Ferrule Fitting System Connection
