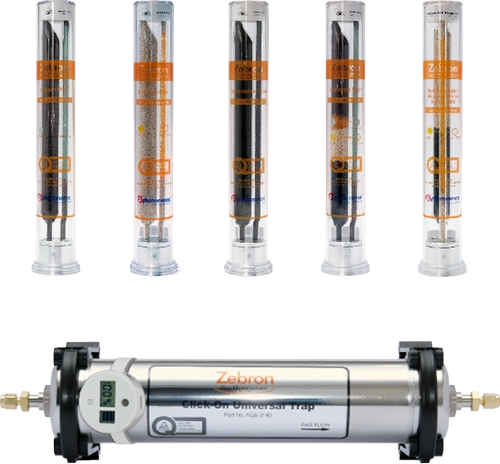

Higher Capacity Filters and Traps that Extend Your GC Column’s Lifetime.

The high adsorption capacity of the Zebron gas management filters removes contaminants from mobile phase gases which reduces potential column bleed, increases the lifetime of your column, and protects sensitive GC detectors from damage. With the new dual wall Zebron gas management filters, you will get more protection, better safety, and less contamination, GUARANTEED.

Order

Select a Phase to view products:

No Separation Mode

Hydrocarbon

Hydrocarbon Moisture

Moisture

No Phase

Oxygen

Universal

Universal Helium

Overview

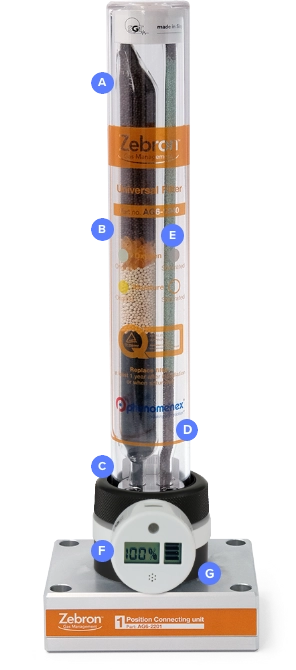

Plug-In GC and LC-MS Gas Filters

A. No Diffusion and No Leaks with Dual Wall Housing!

More protection and less contamination with an inner glass wall and better safety with a plastic outer wall.

B. Higher Capacity

The higher capacity of Zebron gas management filters means less need for replacement and an increase in system uptime, saving you time and money.

C. Easy Filter Installation in Under 20 Seconds!

Avoid system downtime by attaching a new filter to your gas line in seconds!

D. Never Disrupt Your Instrument!

The integrated one way valve on the Zebron gas management base units allow for quick and easy filter changes without disrupting the instrument.

E. Color Change Indicator

Easily Know When to Replace Your Filter! The indicator on each Zebron gas management filter will display when it is time to change your filter.*

F. Electronic Indicator

The optional electronic indicator will alert you with an audible warning on when to change your filter based on typical usage.

G. Universal Compatibility

No need to change your existing connecting unit. Simply remove the old filter, replace the O-ring, click a new filter in, and tighten the connection with the ring nut! (Part No.: AG6-1060).
*Hydrocarbon filters do not include a color indicator

CONFIGURATION UTILITY

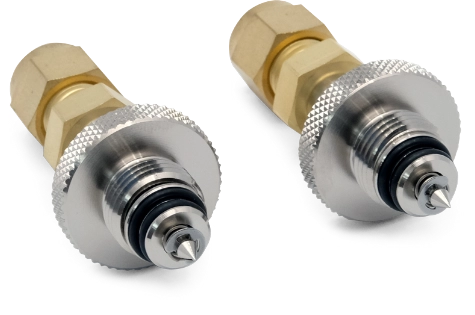

Click-On Connection

The click-on trap connectors allow inline cartridges to be exchanged without introducing contaminants. Spring loaded check valves seal when a filter is removed and open only when a new filter has been locked in place.

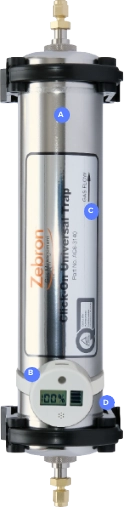

Click-On GC Gas Traps

A. Click-on Trap

Never disrupt your instrument! Attach a new filter in under 10 seconds. Once the connecting unit is installed, you will be able to change traps as often as needed without interrupting the instrument.

B. Easily Know When to Replace Your Filter!

The optional electronic indicator displays when scheduled replacement or maintenance is due.

C. High Pressure Durability

The Click-on trap is completely made out of stainless steel and can withstand high pressures. The seals at each end of the trap will only be punctured when the click-on connector is locked in place.

D. Secure Wall Mount

These wall mounting clamps will EASILY help attach a Zebron gas trap to a wall or surface.

Save Time and Money

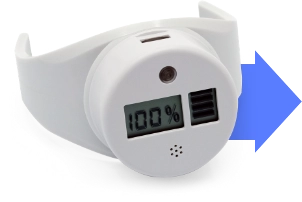

Easily know when to replace the gas filter and trap by using the Zebron electronic indicator

Clip a Zebron Electronic Indicator onto your filter or trap and go!

GC FIlter

GC Trap

LC-MS Filter

Then you can visually check the indicator to know when it’s time to replace your filter or trap.

No Color: Ready to Use

Orange: 20% of Capacity

Red: Reaching Capacity

Red + Buzz: Time to Change
Default Device Settings
  • 12 Months Gas Filter
  • 18 Months Gas Trap
  • 6 Months LC-MS Filter
Manual Device Settings

For manual configuration, download and install the latest version of the configuration software utility and connect the device to your computer with a Micro USB cable.

CONFIGURATION UTILITY

Step-by-Step Instructions on How to Install Zebron Gas Management Filters and Traps

FAQs

In general, water does not have an impact on capillary columns containing chemically bonded polysiloxane stationary phase. However, polyethylene glycol (PEG) based phases may be affected by repeated injections of water that can result in a change in column polarity. For injections of water samples, a Zebron ZB-WAXplus GC column is recommended. This column will not change polarity or peak shape even if solvent rinsed with water. All columns run at low isothermal temperatures may retain water, affecting peak shape. Routinely elevating the column temperature will remove the water and restore column performance. Exposure to oxygen, particularly at elevated temperatures, will result in irreversible column damage. This is usually seen as excessive bleed levels but may also present as differences in selectivity and peak shape. To avoid possible damage, combination oxygen/moisture traps (AG0-4778 or AG0-4779), are typically used to reduce oxygen and water levels to < 15 ppb.
A contaminated gas supply can be a source for higher bleed. The best way to confirm is to change the gas tank or switch to a different source.
A change in carrier gas from hydrogen to helium will alter the ion ratio for very polar compounds.
