What is Magnetic Bead-Based Protein Purification? A Beginner’s Guide

December 11, 2025
Author: Phenomenex Team

Magnetic bead-based protein purification has emerged as one of the most dependable and versatile tools in biotech laboratories. It offers a fast, simple, and highly selective way to isolate proteins from complex samples, without centrifugation or complicated instrumentation. Using magnetically responsive particles to capture target proteins, this method streamlines workflows, improves reproducibility, and can be scaled from individual samples to high-throughput formats when integrated with automated platforms.

As laboratories move toward quicker analytical cycles and smaller sample volumes, magnetic bead–based workflows provide an efficient and highly adaptable alternative to traditional purification techniques.

What is Magnetic Bead-Based Protein Purification?

Magnetic bead-based protein purification is a technique that uses magnetically responsive microspheres coated with specific chemistries, such as streptavidin, to selectively isolate target proteins from complex biological matrices. These beads are functionalized with ligands or biomolecules that bind the desired protein with high specificity, enabling rapid and efficient pull-down from complex samples.After binding, the beads are separated from the sample using a magnetic field, followed by washing and elution steps. This fast, gentle process reduces processing time, minimizes sample loss, and can be scaled for high-throughput workflows when integrated with automated or multi-well systems.

Principle and Working Mechanism of Magnetic Bead-Based Protein Purification

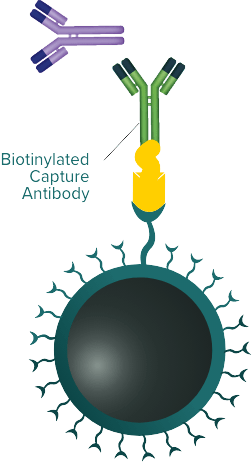

Magnetic beads contain a paramagnetic core encased in a polymer shell that can be functionalized for selective capture. In many systems, the affinity ligand is directly attached to the bead. Phenomenex BioZen MagBeads feature a streptavidin coating with high affinity for biotin. Since biotin can be easily conjugated to many biomolecules, such as antibodies, aptamers, antigens, or receptor fragments, these magnetic beads can be functionalized with a wide range of capture molecules, providing exceptional flexibility and customization. Additionally, the highly stable streptavidin–biotin interaction withstands stringent washing, ensuring high recovery and purity.

Adding a biotinylated ligand “activates” the bead, enabling precise, customizable selectivity. After binding, contaminants are removed through simple wash steps, and the bead–protein complexes are magnetically separated within seconds. This combination of tunable specificity and rapid magnetic separation makes BioZen MagBeads ideal for complex samples and low-abundance targets.

Advantages of Magnetic Bead-Based Protein Purification

Magnetic beads for protein purification offer multiple advantages.

• Faster Processing: Speed is one of the greatest benefits of magnetic bead protein purification. By removing the need for centrifugation, filtration, or column equilibration, processing times are significantly shortened.
• Adaptability: Researchers can easily select or design capture molecules to target virtually any protein, including complex or low-expression biomarkers. This flexibility is especially beneficial in discovery research, diagnostic development, and screening assays.
• High Reproducibility: Magnetic separation is consistent and low-variability. Beads provide high surface area for efficient binding, even with small or precious samples.
• Automation and High-Throughput: The method integrates with automated platforms and 96-well or 384-well formats, enabling simultaneous processing of many samples.
• Preservation of Protein Integrity: Magnetic bead-based workflows minimize mechanical stress, helping preserve protein structure and activity, an advantage over pressure-driven, chemical, or high-shear systems.

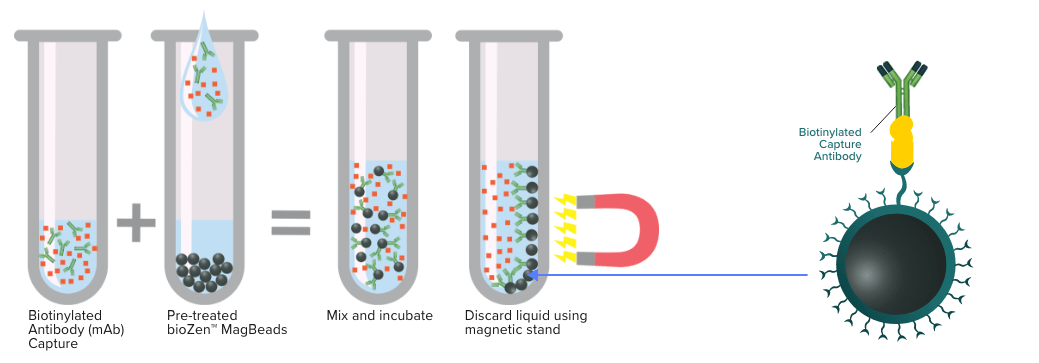

Step-by-Step Process of Magnetic Bead-Based Protein Purification

A streamlined magnetic bead protein isolation sequence ensures selective binding and rapid purification.

1. Bead Activation and Sample Preparation: Before interacting with the sample, magnetic beads must be functionalized. For BioZen MagBeads, this involves attaching a biotinylated capture molecule, such as an antibody or ligand, to the streptavidin-coated surface. This activation step defines the selectivity of the purification and ensures high-affinity binding.



Biological samples such as plasma, lysate, tissue extract, or cell culture supernatant are prepared to ensure the target protein is accessible. This may include filtration, dilution, or buffer adjustment.



2. Binding the Protein to the Functionalized Beads: Once activated, the beads are mixed with the prepared sample. During incubation, the biotinylated ligand on the bead surface captures the target protein. Optimizing parameters such as bead-to-sample ratio, mixing speed, and incubation time improves capture efficiency, especially for low-abundance proteins.
3. Magnetic Separation: After binding, the bead-protein complexes are exposed to a magnetic field, which rapidly pulls them to the side or bottom of the tube or plate. The supernatant containing unbound material is removed. Multiple wash steps are performed to remove nonspecific or weakly bound contaminants without disturbing the bead pellet.



4. Protein Elution: Finally, the purified protein is released from the beads using an appropriate elution buffer. Depending on the ligand-protein interaction, this may involve competitive elution, pH shift, or denaturation. The resulting eluate is ready for downstream applications such as LC-MS, Western blotting, ELISA, or activity assays.

The above workflow demonstrates why protein purification with magnetic beads is valued in the field of protein biochemistry.

Applications of Magnetic Bead-Based Protein Purification

The ease of use and adaptability of magnetic bead-based protein purification makes it suitable for several key fields:

• Biotechnology Research: Supports rapid purification of recombinant proteins from bacterial, yeast, or mammalian expression systems. Scientists can quickly purify tagged or untagged proteins for functional assays, structural studies, and process optimization.
• Immunology: Magnetic beads are ideal for isolating antibodies, antigens, and immune complexes. Because magnetic separation is gentle, fragile immune proteins remain intact.
• Pharmaceutical Development: Used for target identification, biomarker discovery, and high-throughput screening. Beads allow efficient processing of low-volume samples in dense plate formats.
• Clinical and Translational Research: Clinical labs use magnetic beads to isolate proteins from blood, plasma, serum, urine, and tissue extracts. The method is ideal when working with low volume samples.

Across these fields, researchers consider magnetic bead-based workflows among the most versatile protein purification methods.

Magnetic Bead-Based Protein Purification vs. Traditional Methods

Magnetic bead–based purification is preferred when:

• Samples are small or low-abundance
• Fast turnaround is required
• Minimal equipment is desired
• High-throughput or automated workflows can be used

Traditional methods (e.g., affinity chromatography, ion exchange, filtration) are more suitable for large-scale or preparative protein purification, where higher binding capacity is needed. However, they typically require more optimization, time, and specialized instrumentation.

Future Trends and Innovations in Magnetic Bead-Based Protein Purification

Emerging innovations are focused on improving bead surface chemistry, reducing nonspecific binding, and increasing reproducibility.

Phenomenex’s BioZen MagBeads feature:

• A hydrophilic copolymer surface to minimize nonspecific hydrophobic interactions
• Biotinylated BSA spacer layers to properly orient capture antibodies or ligands for optimal binding.
• Optimized streptavidin surface spacing for greater binding efficiency and accessibility

These features reduce nonspecific binding, improve capture consistency, and support cleaner eluates. As protein purification demands are evolving, especially in proteomics, personalized medicine, and diagnostic development, advanced magnetic bead systems like BioZen MagBeads, along with the methodologies highlighted in the BioZen MagBeads application note, will continue to improve workflow performance.

FAQs

How do magnetic beads work for protein purification?

Magnetic beads bind target proteins via functionalized ligands and are isolated using a magnetic field for quick and gentle separation.

What are the main benefits of using magnetic beads?

Speed, high specificity, low sample requirements, and compatibility with automation make magnetic beads protein purification highly efficient.

Can magnetic beads be reused?

Reuse of magnetic beads for protein purification depends on the bead type and protocol, but it is usually not recommended. Most applications require single-use to maintain purity and prevent cross-contamination.
