How Does Core-Shell Technology Work?

Core-shell technology in chromatography is a revolutionary approach that enhances the efficiency of HPLC systems while minimizing costs. Core-shell particles are designed with a solid, non-porous silica core surrounded by a porous outer layer. This unique structure allows for faster analyte mass transfer between the mobile and stationary phases, as diffusion occurs only through the thin, porous shell rather than the entire particle. This minimizes band broadening, leading to higher separation efficiency and sharper peaks.

The consistency in size and shape of core-shell particles further enhances separation efficiency by reducing variability in analyte movement. As a result, core-shell HPLC columns provide high efficiency and resolution at lower backpressures, making them an ideal choice for labs looking to improve their existing HPLC systems without the need for costly UHPLC equipment.

Core-shell technology thus offers a cost-effective alternative to upgrading to UHPLC systems, enabling labs to maximize the efficiency of their current HPLC setups. The formation of these particles through advanced sol-gel processing techniques ensures uniformity and reliability, making them a valuable tool in modern chromatography. By using the Kinetex HPLC column, laboratories can achieve faster analysis times and higher productivity while maintaining excellent separation performance.

Kinetex Core-Shell Performance on Any LC System

The 5 versatile particle sizes allow you to select the best fit for your instrument .

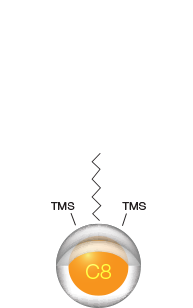

Particle Chemistry

Using sol-gel processing techniques that incorporate nano-structuring technology, a durable, homogeneous porous shell is grown on a solid silica core to create a Kinetex Core-Shell particle. This particle morphology results in less band broadening for all four sources of UHPLC band broadening compared to fully porous particles and thus delivers extremely high efficiencies.

• Optimized for Ultra-High Performance
• Superior Core-Shell Quality
• Core-Shell Scalability and Portability

Kinetex particles are characterized by an exceptionally consistent size distribution, with particles being nearly monodispersed, meaning they are uniform in size. This precise uniformity plays a crucial role in minimizing variability within the column, leading to enhanced separation efficiency and sharper peaks.

The nearly monodispersed nature of these particles ensures that the flow of the mobile phase remains consistent, reducing the likelihood of irregularities that can impact results. As a result, Kinetex columns deliver highly reliable and reproducible performance, making them ideal for achieving consistent analytical outcomes across various applications.

Expand Your Core-Shell Selectivity Toolbox

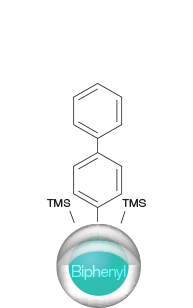

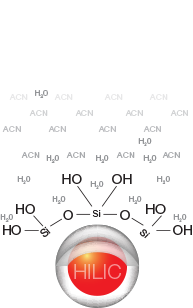

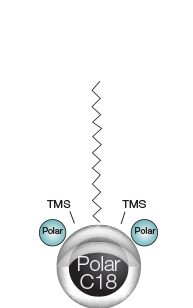

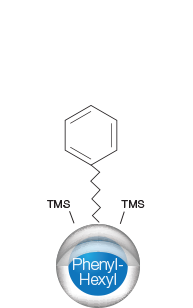

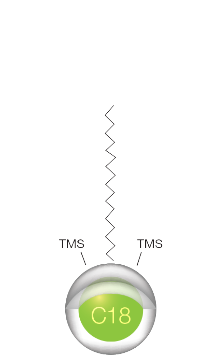

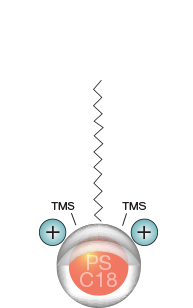

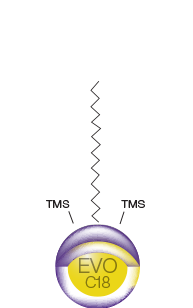

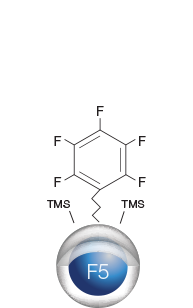

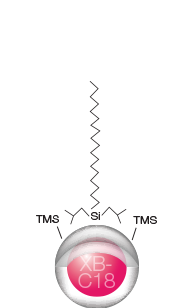

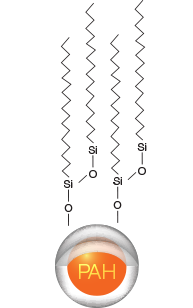

Kinetex core-shell particle LC columns deliver exceptional performance enhancements across any LC system, offering unmatched efficiency and resolution. With a choice of 11 diverse stationary phases, these columns cater to a wide range of chromatographic applications, ensuring optimal separation for various analytes.

Additionally, the availability of five versatile particle sizes allows for precise method tailoring, enabling both high-speed and high-resolution separations. Whether you're using HPLC or UHPLC systems, Kinetex columns provide the flexibility and performance needed to achieve superior analytical results.

† Shipping conditions may vary slightly in terms of organic to aqueous ratio, depending on column dimensions. * pH stability under gradient conditions. pH stability is 1.5-10 under isocratic conditions.

****
Y=Yes
N=No

Core-shell vs Fully Porous

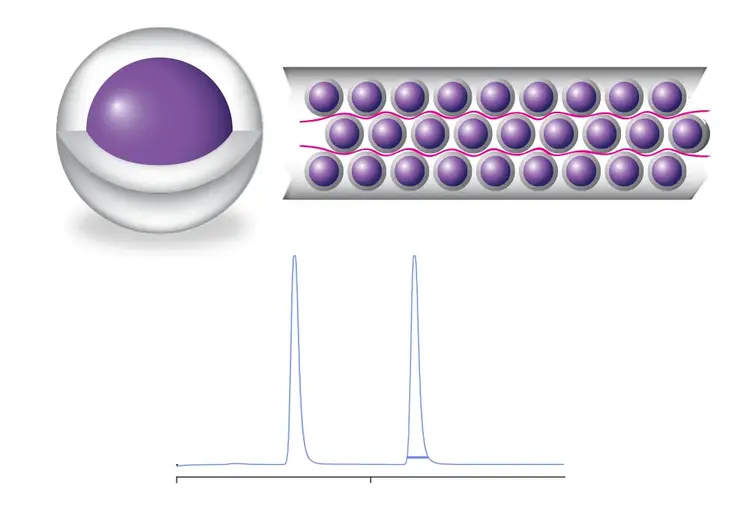

High-Efficiency‚ High-Density Particle

The combination of a consistent, solid, high-density core along with proprietary column packing technologies in the Kinetex HPLC column ensures optimum bed structure and high column performance. This carefully designed core structure promotes uniform packing of the particles, which is essential for minimizing band-broadening effects that can arise from Eddy Diffusion.

The manufacturing process of Kinetex columns is tightly controlled, focusing on factors such as particle size distribution, surface and bonding homogeneity, and packing quality. This meticulous engineering leads to uniform packing and minimized band-broadening, resulting in superior separation efficiency.

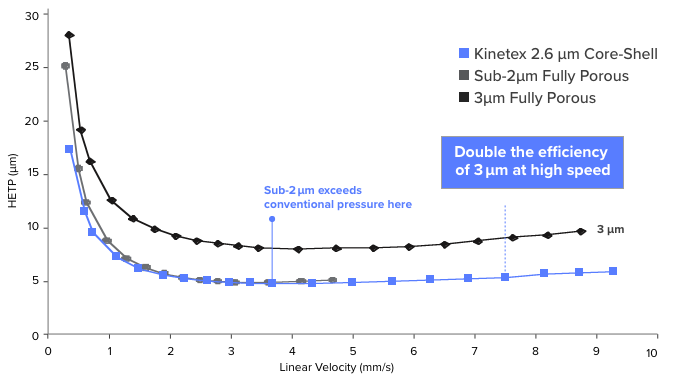

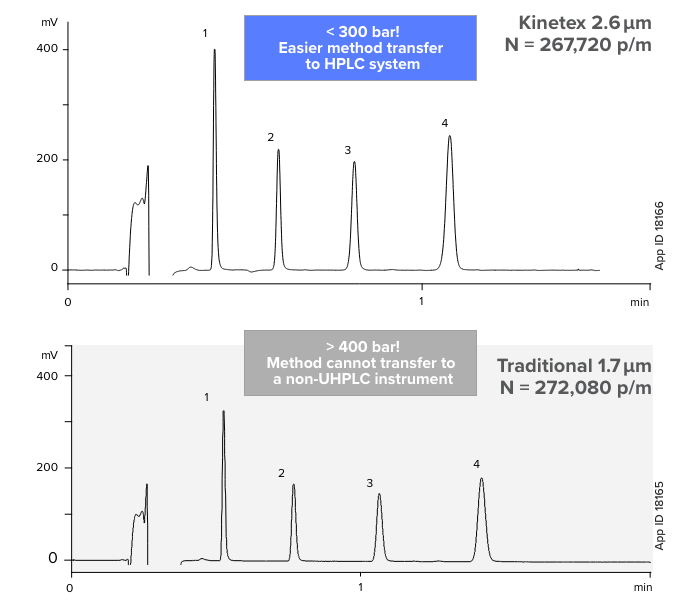

Achieve Sub-2 μm Performance within HPLC Backpressure Limitations

Conditions for both columns:

Sample:
0.5 µL test mixture

1. Acetophenone
2. Benzene
3. Toluene
4. Naphthalene

View Application

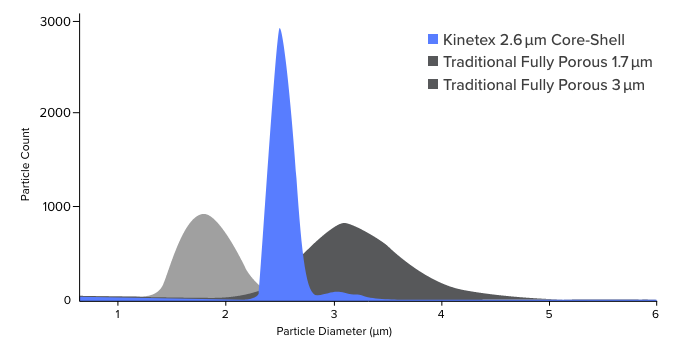

Uniform Particle Size Distribution

Every step in the manufacturing process of Kinetex Core-Shell columns is tightly controlled for:

• Surface and bonding homogeneity
• Selectivity quality control testing
• Inertness of the base silica
• Packing quality and consistency

Comparative separations may not be representative of all applications.

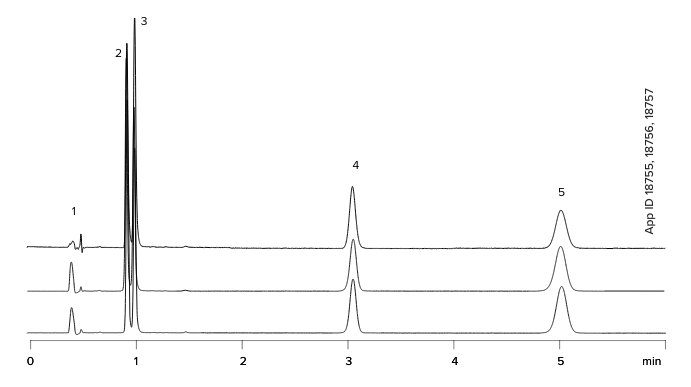

Sample:

1. Uracil
2. Hydrocortisone
3. Cortisone
4. Cortisone Acetate
5. 17-Hydroxyprogesterone

View Application

Top 5 Pros of Kinetex Core-Shell Technology

• Productivity: Kinetex Core-Shell Technology significantly enhances method productivity with minimal effort. By simply replacing traditional, fully porous columns with Kinetex HPLC columns, users can achieve better resolution, sensitivity, and overall productivity without extensive method redevelopment. This easy switch allows for immediate improvements in chromatographic performance, making it a cost-effective upgrade to existing methods.
• PortabilityThe Kinetex Core-Shell columns are available in a range of particle sizes (1.3 µm to 5 µm), which ensures method portability across different HPLC and UHPLC systems. This scalability allows for consistent retention and selectivity across various particle sizes while accommodating different backpressure levels, making it easier to transfer methods between instruments.
• Performance Kinetex Core-Shell Technology delivers superior chromatographic efficiency compared to fully porous particles. This efficiency boost enables chromatographers to maximize the performance of their HPLC/UHPLC systems, ensuring optimal results with higher resolution and sharper peaks, even under similar method conditions.
• Phases With 11 unique phase selectivities available, Kinetex Core-Shell Technology offers unmatched versatility for method development. This wide selection of phase chemistries allows for tailored separations and simplified optimization, ensuring the best possible results for a wide range of applications.
• Pressure Kinetex Core-Shell columns provide higher efficiency at lower system backpressures compared to fully porous columns. This allows users to achieve superior chromatographic performance on conventional LC instruments without the need for ultra-high-pressure systems, making it a practical choice for routine analyses.
